Description

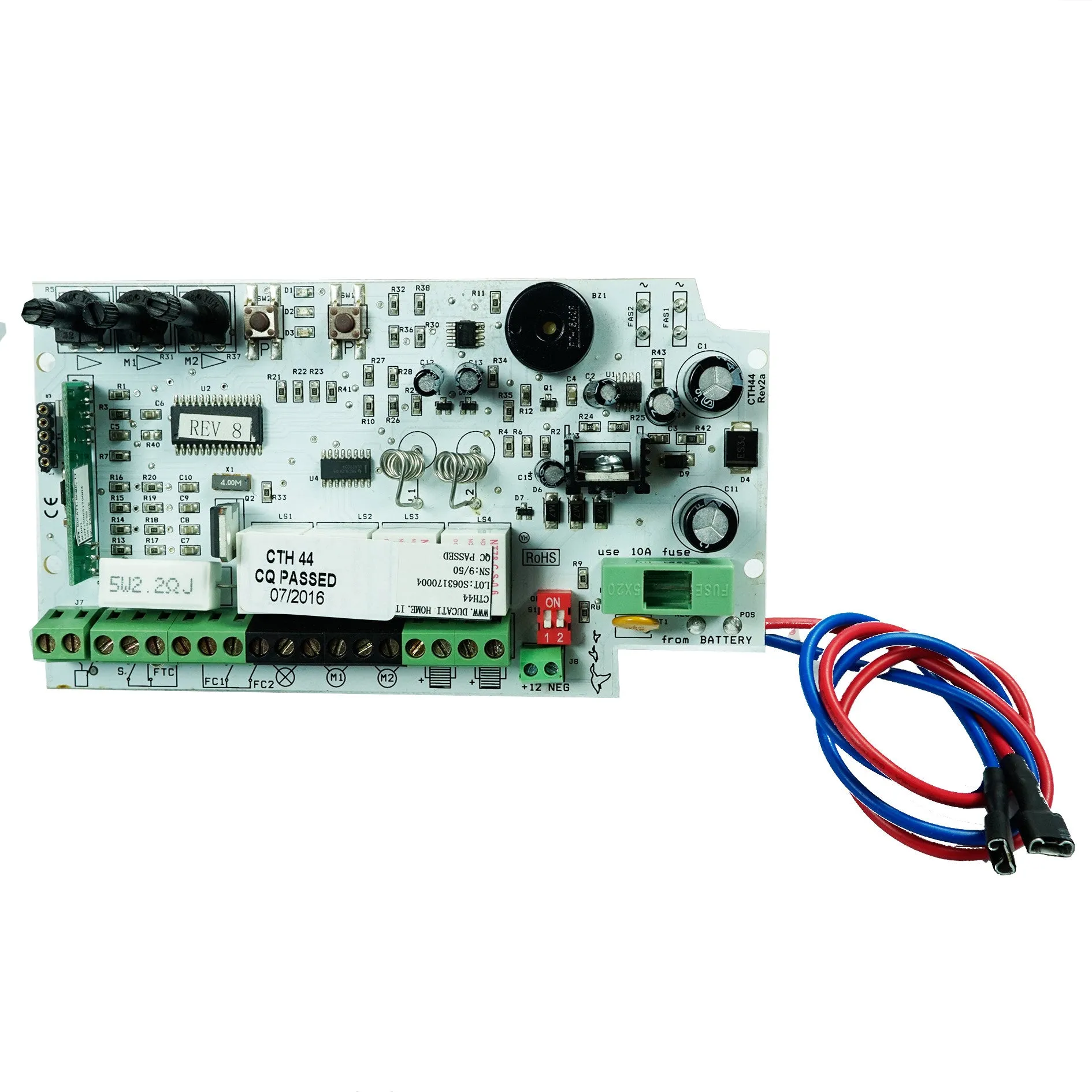

Electronic board for DUCATI's Solar powered 12V garage door opener 8990

• Ensures 100% autonomous use even  where AC power is unavailable.
• Highly reliable as featured with Ducati's low consumption technology FULLSOL: with only 7mA stand-by consumption ensures long lasting performances in all weather condition.  Up to 50 cycles daily guaranteed. No additional modules requires: it's all included: on board solar panel & battery recharge management!
• featuring DUCO SAFE: obstacle detection safety system guarantees maximal safety of use to your family
• comes with DUCATI's rolling coded radio transmission ( on board radio receiver & antenna cable).

Compatibility

MOTOR COMPATIBILITY:

• compatible with 8990 (12V) garage door opener only

ACCESSORIES COMPATIBILITY:

• DUCATI's rolling coded remote controls,
• keyswitch NO ( normally open contact)
• 12V low consumption photocells model 7120
• 12V bulb blinker
• external additional radio receiver RIXY6040R or  RIXY 6043

Features

• Low consumption technology: only 7mA stand-by consumption! Protect the environment, reduces waste of energy, save money.
• Ensure long lasting autonomous use ad reliability. Up to 50 daily cycles guaranteed even in worst winter weather.
• Integrated solar panel & battery management: the card is a just ready to operate autonomously powered by solar panel. No need to add any extra module
• standard battery use: when you'll need to replace the battery ( about each 2-3 years of use) you can find it anywhere a we do not use customized expensive batteries
• Automatic closing with adjustable time (you can vary the pause time from 1 to 100 seconds) or step-by-step mode (push to open & push to close).
• Easy self-storing of the remotes controls by pushing one button
• Adjustable motor power
• Solar panel alignment help system (LED and acoustic guide to find the ideal position of the solar panel)
• Photocells alignment help system (LED and acoustic guide to find the ideal position of the solar panel)
• Battery charge status indicator ( LED)
• Made in Italy - All components are manufactured in the company to warranty high quality and reliability. After sale service and assistance provided directly by manufacturer without intermediaries
• : product certified on all points of the current European regulations. Notify body as NEMKO / INTERTEK test reports & certificates available on request
•  is ensured by an sensitive amperometrical obstacle detection system and pressure control. Photocells ( safety beans) are no longer mandatory. Photocells  are an optional accessory that can be added to prevent scratches to the painting of vehicles crossing while gate is closing. In compliance with EN norms EN13241-1: 2003 A1 ( April 2011 ) EN12453 : 2002 EN12445 : 2000)
• Totally in house designed software and hardware are focused on reduce energy consumption and with attention to the absolute reliability using innovative components of the latest generation as our High quality radio receiver hybrid

Technical Data

CTH44 G ELECTRONIC BOARD TECHNICAL DATA

(solar panel & battery management on board)

Manual

 to view installation manual
