Name: HC619 SOLAR MONO
SKU: 287153

Product Details ＋

Description

Ideal for 1 wing swing gates up to 3m/10ft each wing

This classic DUCATI "vintage" design gate operator features SOLAR POWER power supply for 100% autonomous use.

Several advanced options combined with 600mm long stroke actuators for greater strength and less mechanical stress of the system.

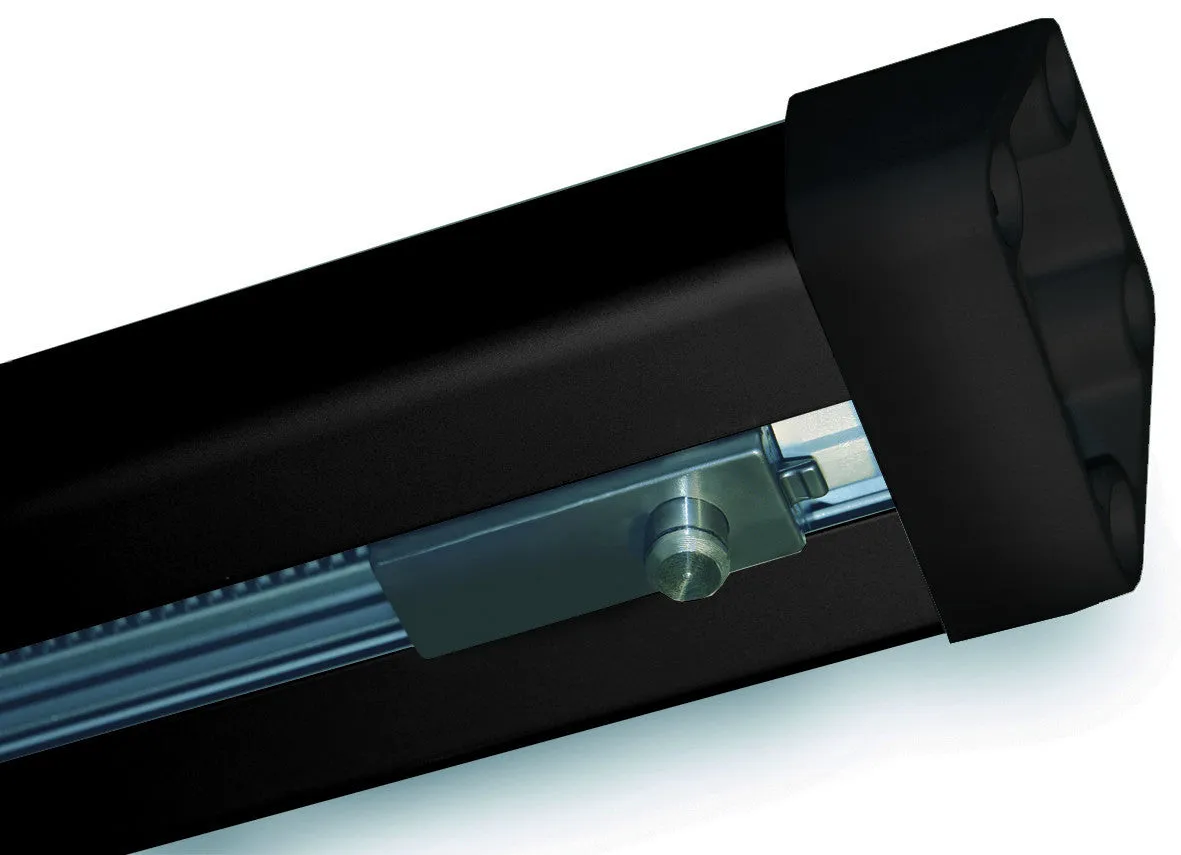

in FC version also offer buit-in mechanical limit for gate open and closed position. Ideal where otherwise required end stop limits cannot be installed on the ground to set the gate open and closed position

about reduced consumption technology....

about our solar powered openers....

Ensures 100% autonomous use even where AC power is unavailable

Highly reliable as featured with Ducati's reduced consumption technology: with only 7mA stand-by consumption ensures long lasting performances in all weather condition. Ideal for residential use. Up to 50 cycles daily guaranteed . No additional modules requires: it's all included: on board solar panel & battery recharge management!

DUCO SAFE

obstacle detection safety system guarantees maximal safety of use to your family

SELF LOCK TECHNOLOGY

The self-locking properties of the spindle increase the protection against a dangerous and unauthorized “pressing” of the gate and the otherwise necessary e-locks for the final positions can be omitted. A massive 20 mm diameter three principle steel spindle made of PR80 steel ensures long and reliable operation

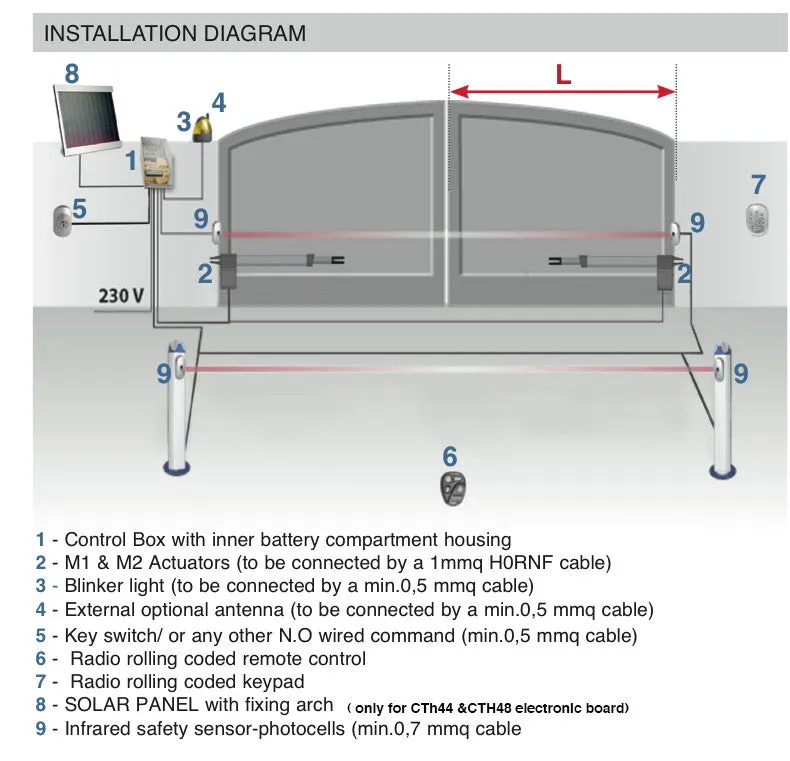

Kit Contents

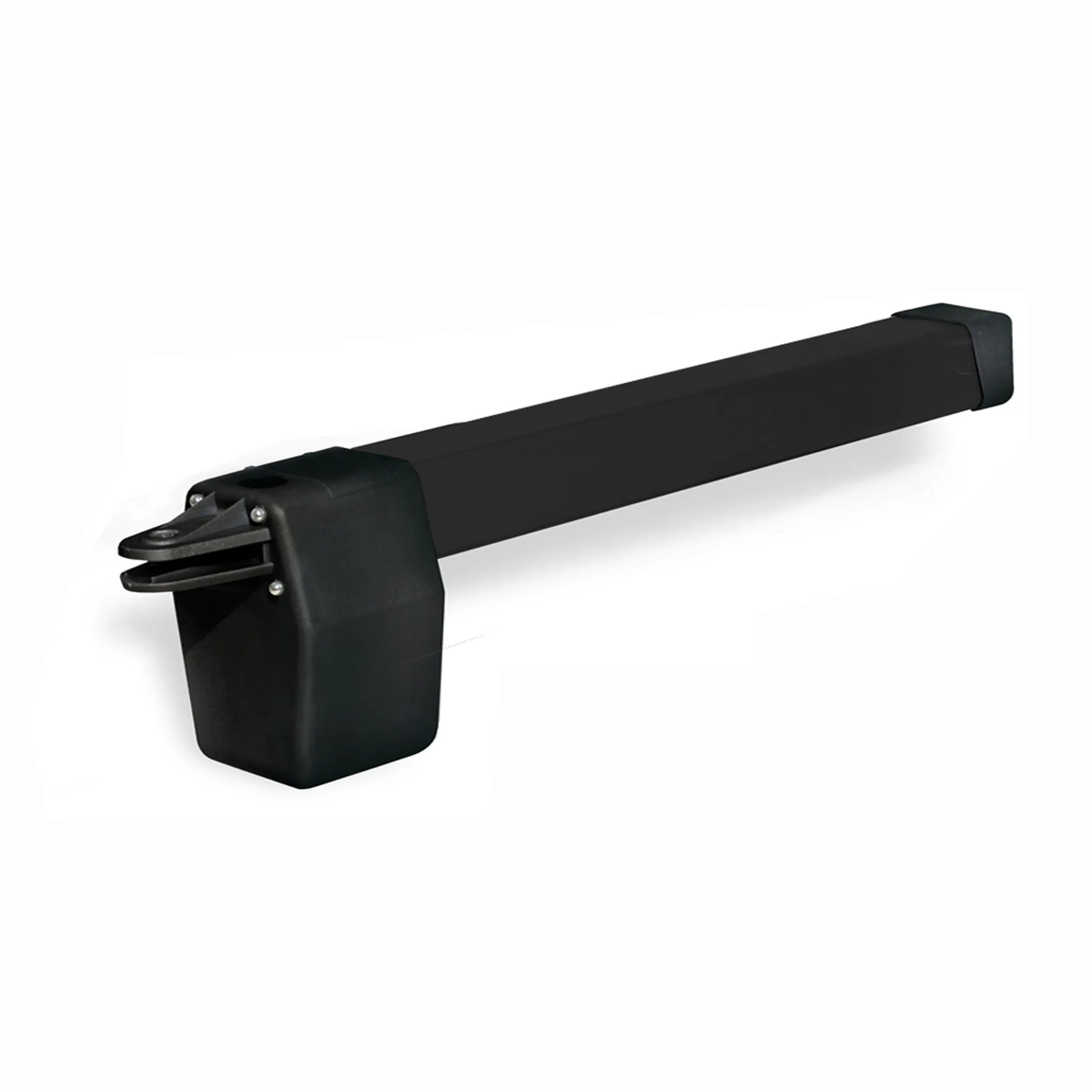

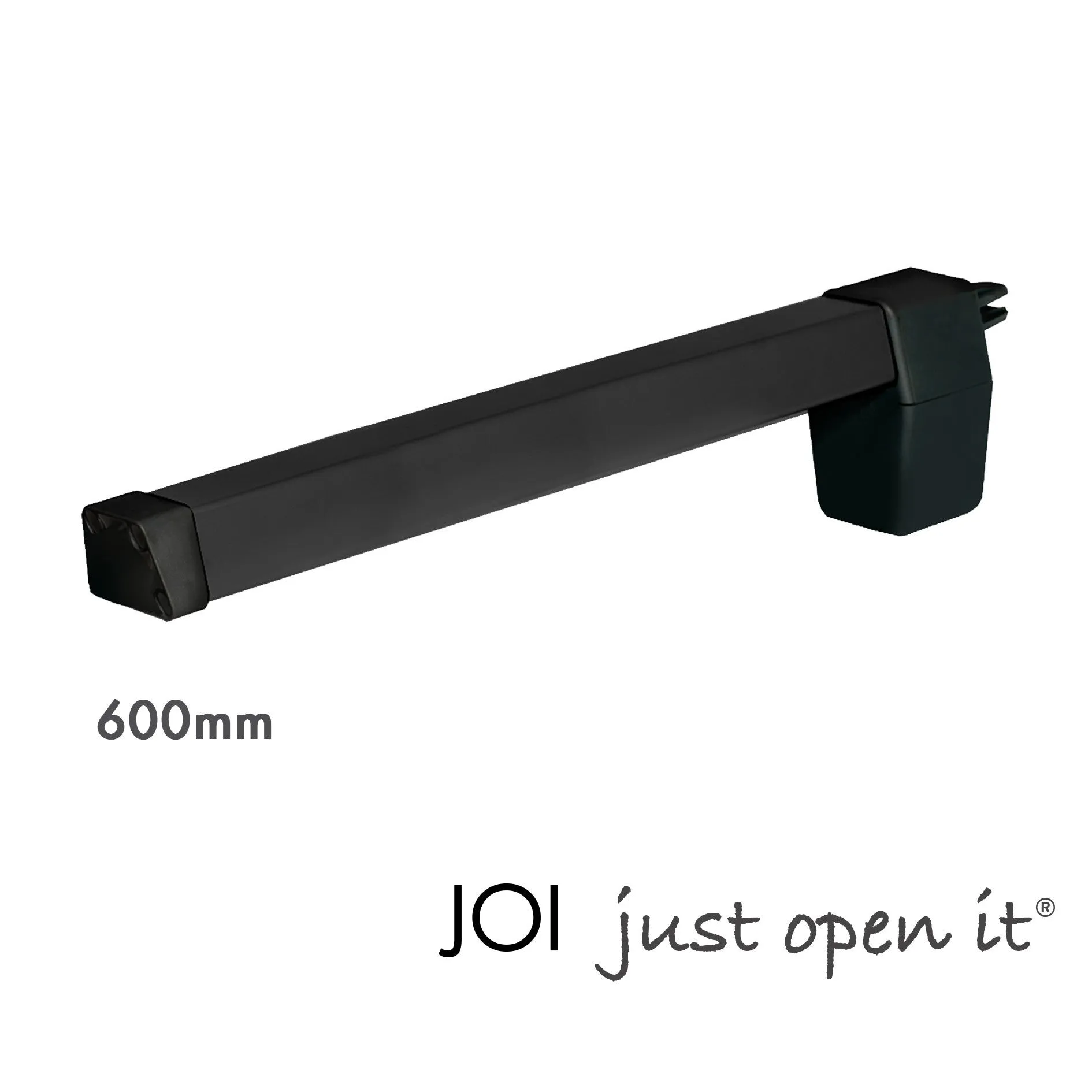

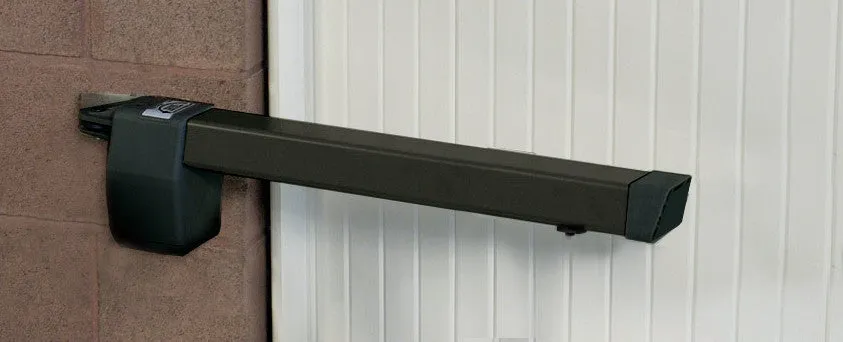

1x HC618- 600mm stroke electromechanical actuators supplied with 1 m outdoor use cable H05RN-F 2 x 1mmq

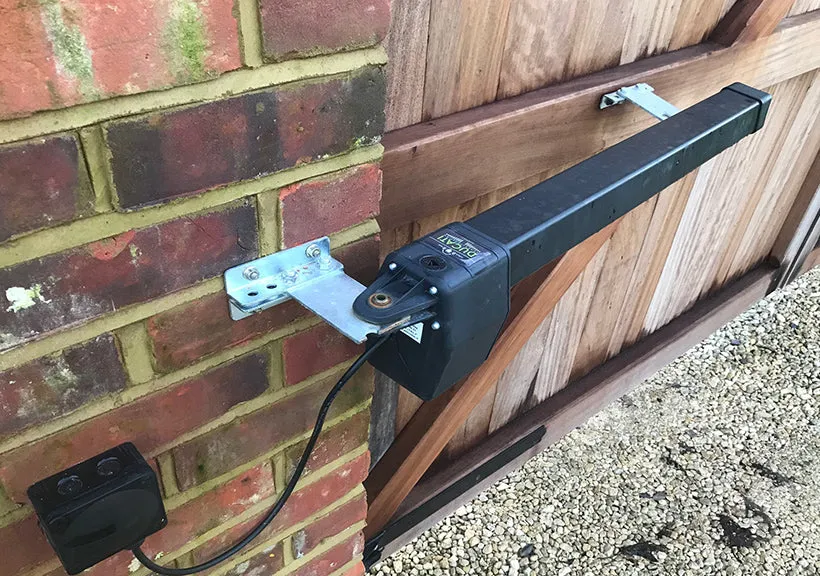

set of actuator's fixing brackets

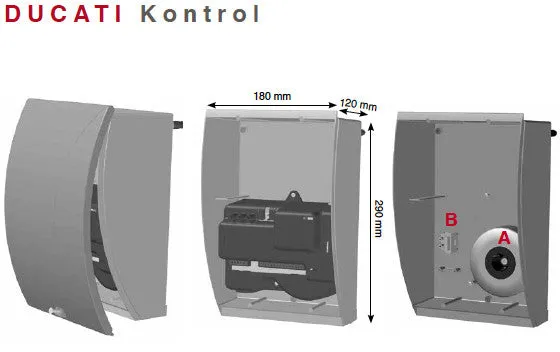

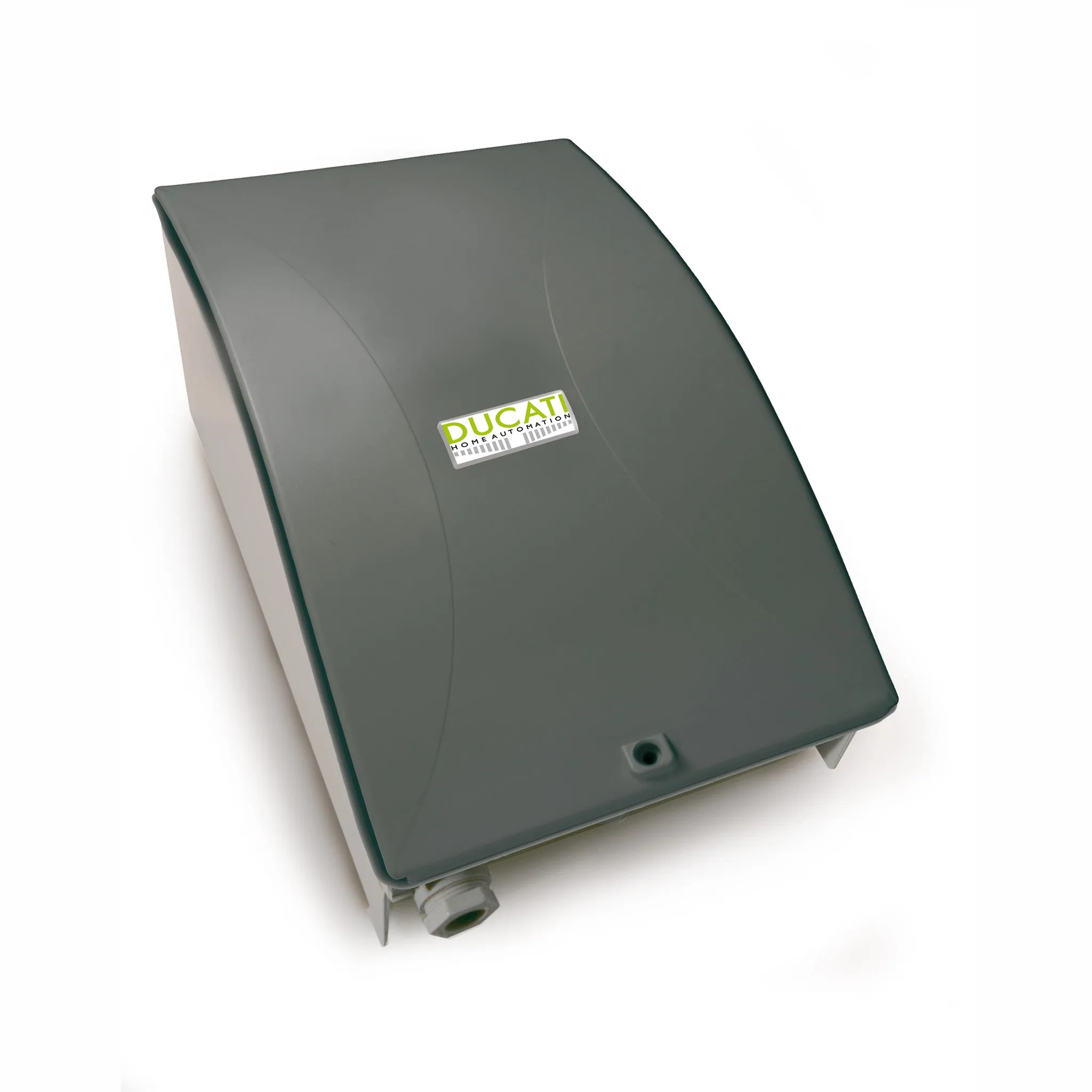

1x KONTROL 7857 large control box with electronic board CTH44, integrated solar panel and battery management, toroidal transformer, integrated radio receiver.Note: the control box is designed to be powered by solar panel, but can also be powered by main AC power mantaining wired the battery. the transformer is therefore supplied for Ac power supply wring if required by the customer for any reason and can also be used to recharge the battery

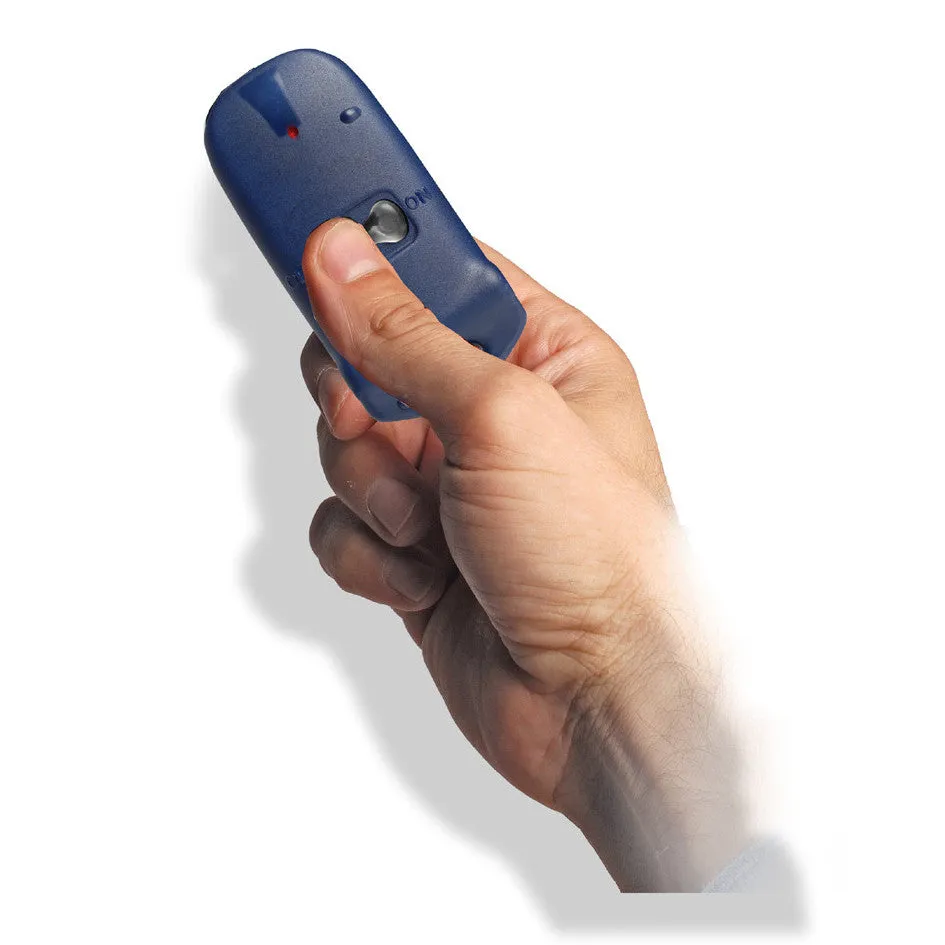

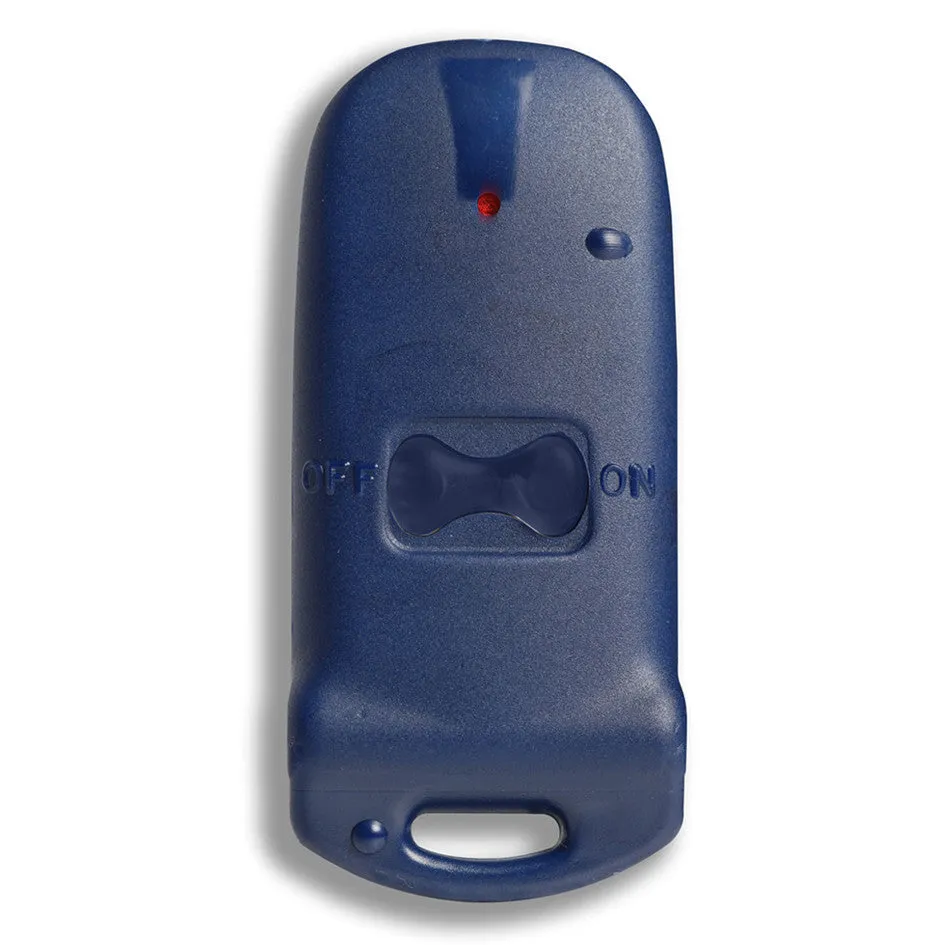

2x 6203Roll - 2 buttons 433,92 Mhz rolling code radio transmitters
1x HC7500 - blinking light 12V ( 24V for 24V variant)
1x SW5000 - key switch
1x key for manual emergency release
1x BAT0712 Battery 12V 7A

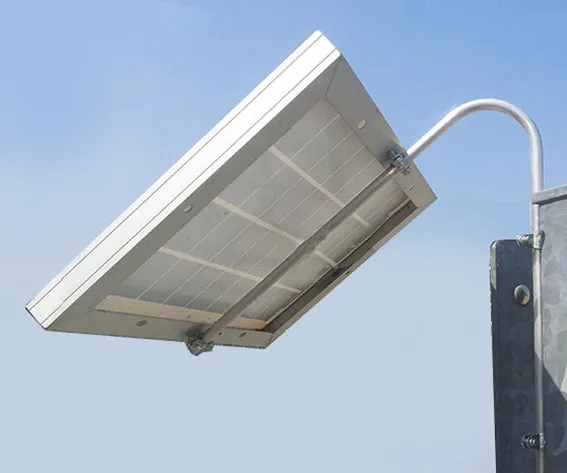

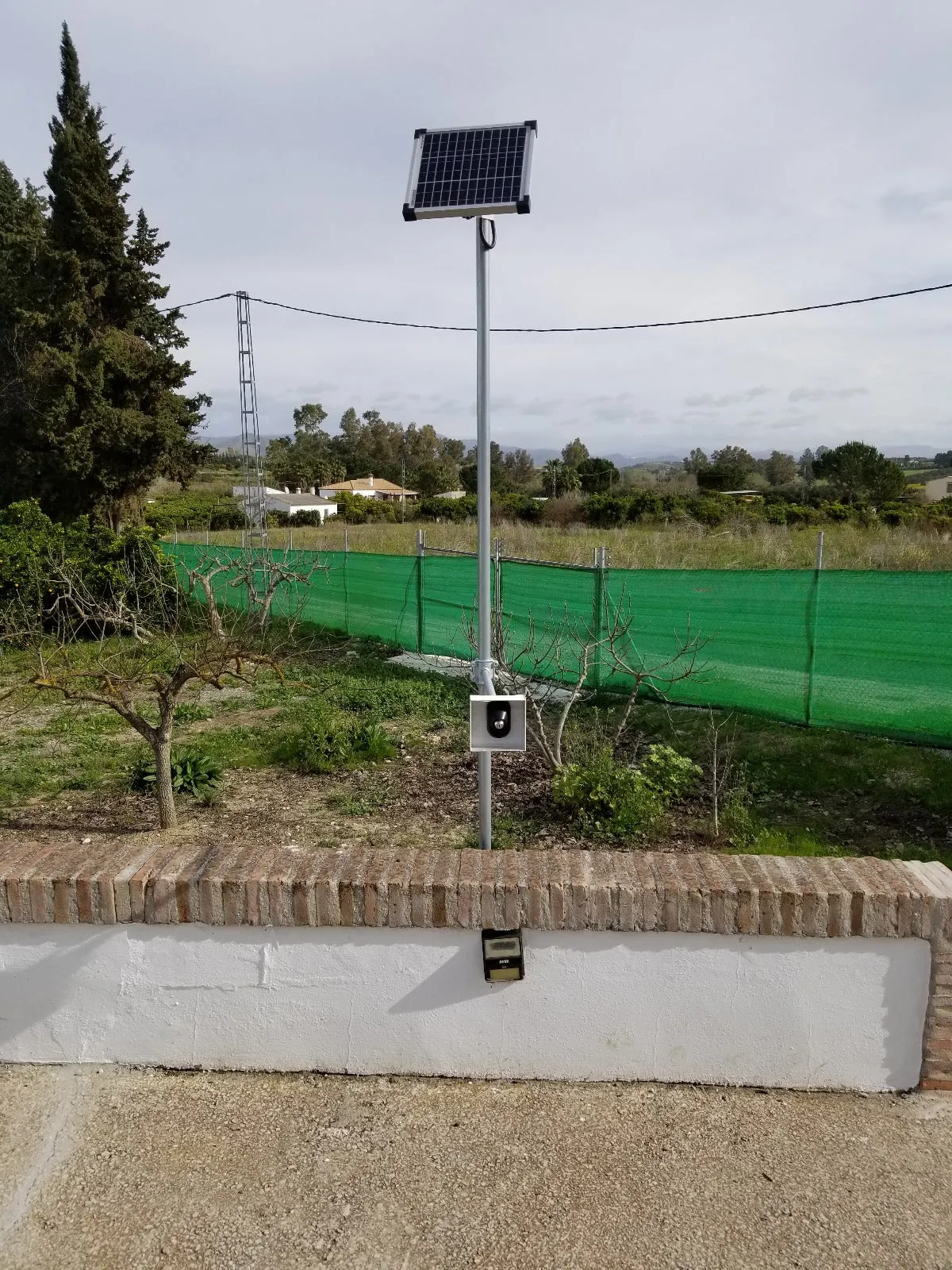

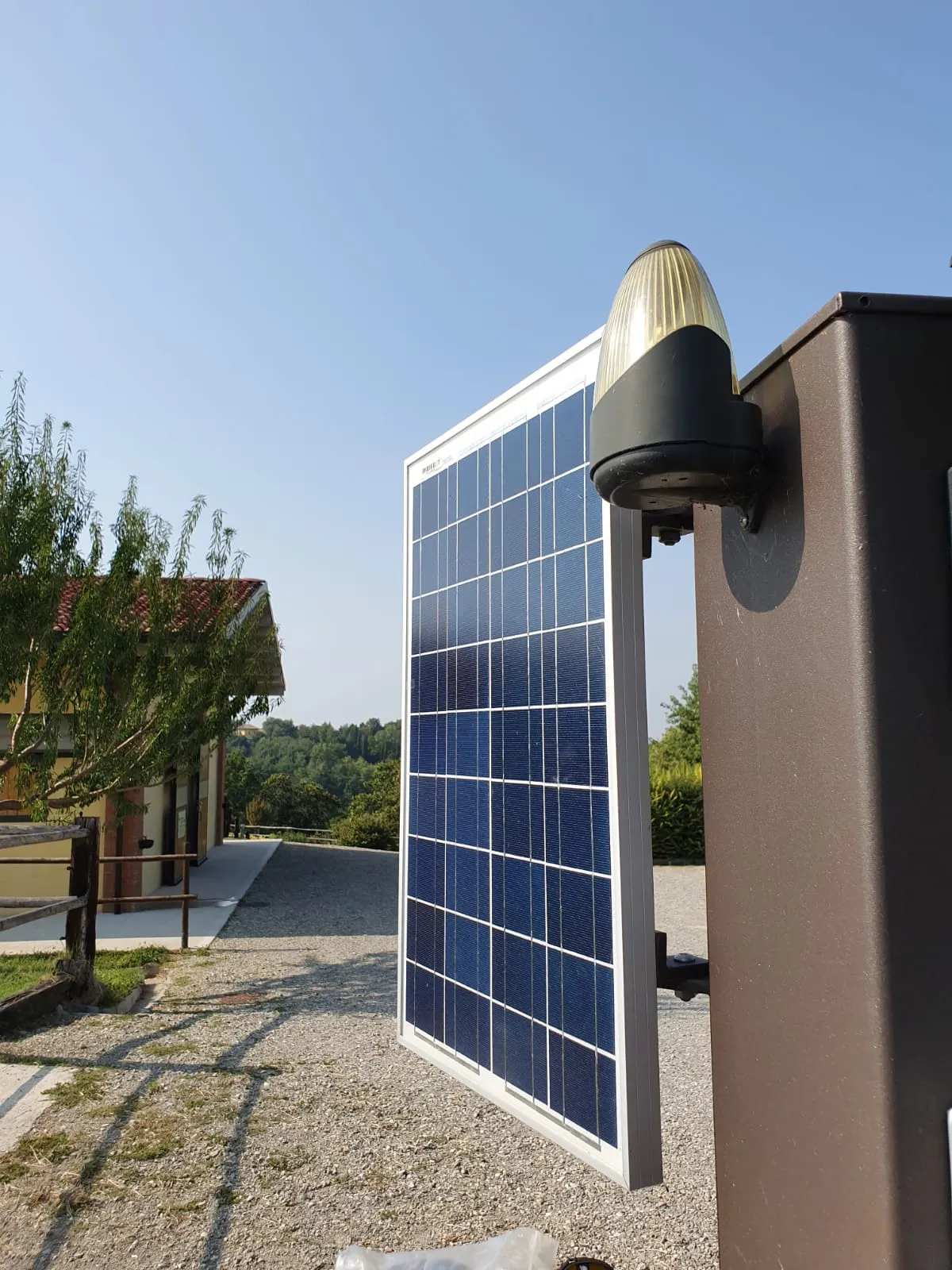

1x SOLAR1012 Solar photovoltaic panel 12V 10W with fixing bracket
1x instruction manual

Features

POWERFUL 600mm stroke electromechanical actuators
Ideal for a safe, quick and easy installation: the system is electrocution risk-free.
Low consumption technology: only 0,007A stand-by consumption! reduces waste of energy, save money Ensure long lasting autonomous use ad reliability. up to 40 daily cycles guaranteed even in worst winter weather.
Integrated solar panel & battery management: the control board is ready to operate autonomously.
Ideal for a safe, quick and easy installation: the system works in DC current and is electrocution risk-free.
2 working modes: "STEP by STEP" ( push to open & push to close) or Automatic close with adjustable time (you can vary the pause time from 1 to 100 seconds)
Control unit with integrated battery housing compartment: can fit any 12v battery up to maximal dimension : 9cm x 15cm x 9,5cm h
Easy self-storing of the remotes controls by pushing one button
Adjustable motor power/ obstacle detection sensitibility. By decreasing the power the gate opener will be more sensible in case of impact on an obstacle. The adjustment is very easy: just need to rotate potentiometer related to each motor.
Pedestrian opening (1 partial opening of one wing to allow the pedestrian crossing) this feature can be controlled by remote control
Made in Italy - All components are manufactured in the company to warranty high quality and reliability.
After sale service and assistance provided directly by manufacturer without intermediaries in order to provide quick and immediate solution to any demand.
The gate is automatically locked in closed position (irreversibile system).
Manual release system by universal triangular key
Safety is ensured by an sensitive amperometrical obstacle detection system and pressure control. Photocells ( safety beans) are no longer mandatory. Photocells are an optional accessory that can be helpful to prevent scratches to the painting of vehicles left in the vicinity of a moving gate. (EN13241-1: 2003 A1 ( April 2011 ) EN12453 : 2002 EN12445 : 2000)
: product certified on all points of the current European regulations. Notify body as NEMKO / INTERTEK test reports & certificates available on request
Totally in house designed software and hardware are focused on reduce energy consumption and with attention to the absolute reliability using innovative components of the latest generation as our High quality radio receiver hybrid
Ducati chooses to use toroidal transformers only to achieve maximum reliability and safety by power surges and ESD. Our Standard 230V-50Hz transformer is also available in 110V/60Hz version.
Integrated solar panel management: the card is a just ready to operate autonomously powered by solar panel. NOTE: For 12V version add a standard 12V battery 1 x 12V min.10W solar panel. For 24V version add 2 x 12V batteries in series connected 24V min. 20W solar panel. No extra module needed
Low consumption technology: only 0,007A stand-by consumption for the 12V version and only 0,014A ! Protect the environment, reduces waste of energy and gives long lasting autonomy with battery /solar panel use
Adjustable motor power/ obstacle detection sensitivity. By decreasing the power the gate opener will be more sensible in case of impact on an obstacle. The adjustment is very easy: just need to rotate potentiometer related to each motor.
heavy duty opener: can work in continuous cycles without overheating
Adjustment of the time lag between the two doors
Pedestrian opening (1 partial opening of one wing to allow the pedestrian crossing) can be controlled by remote control or wired control.
Made in Italy - All components are manufactured in the company to warranty high quality and reliability.
After sale service and assistance provided directly by manufacturer without intermediaries
Easy self-storing of the remotes controls by pushing one button
Safety is ensured by an sensitive amperometrical obstacle detection system and pressure control. Photocells ( safety beans) are no longer mandatory. Photocells are an optional accessory that can be helpful to prevent scratches to the painting of vehicles left in the vicinity of a moving gate. (EN13241-1: 2003 A1 ( April 2011 ) EN12453 : 2002 EN12445 : 2000)
: product certified on all points of the current European

Technical data

ACTUATOR TECHNICAL DATA

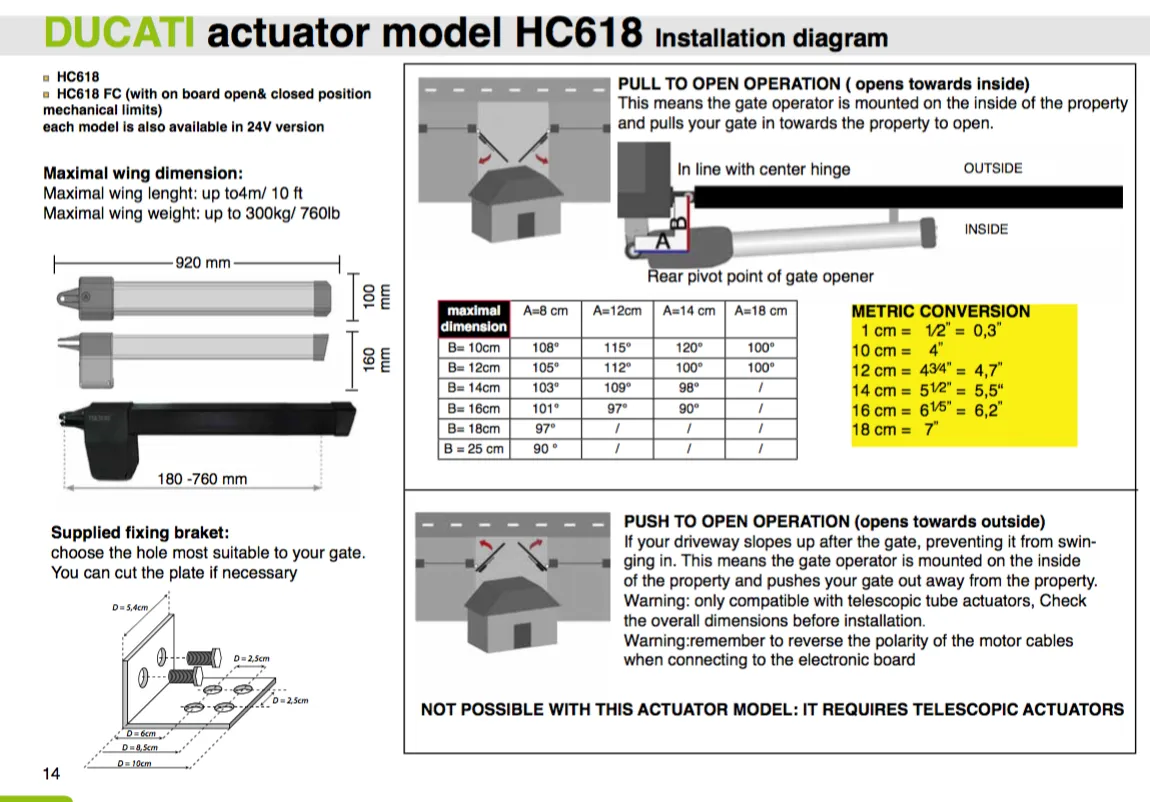

ELECROMECHANICAL ACTUATOR HC618

Motor power supply	12V
dc motor	60W
max pushing & power	1200N
Stroke	600mm
motor speed	1,5 cm/sec
electromechanical actuator	√
working cycles limit	continuous use/ no limits
working temperature	-20°C/ 50°C
max wing length	3m
max.wing weight (24V version)	300kg
max. opening angle	137°
automatic wing lock	√ irreversible actuator
manual release system	√ by triangular key
Max "C" measure (see pillar installation diagram hereunder) to install the actuator avoiding any masonry work on the pillar	23 cm
Compatible with gate opening towards outside	√

NOTE: the actuator will stop by amperometric detection system: it therefore requires mechanical limits to be installed on the floor to stop the gate wing in the open and closed position. Special actuator model HC618 in "FC" version are featured with on-board mechanical limits for the open & closed wing position.

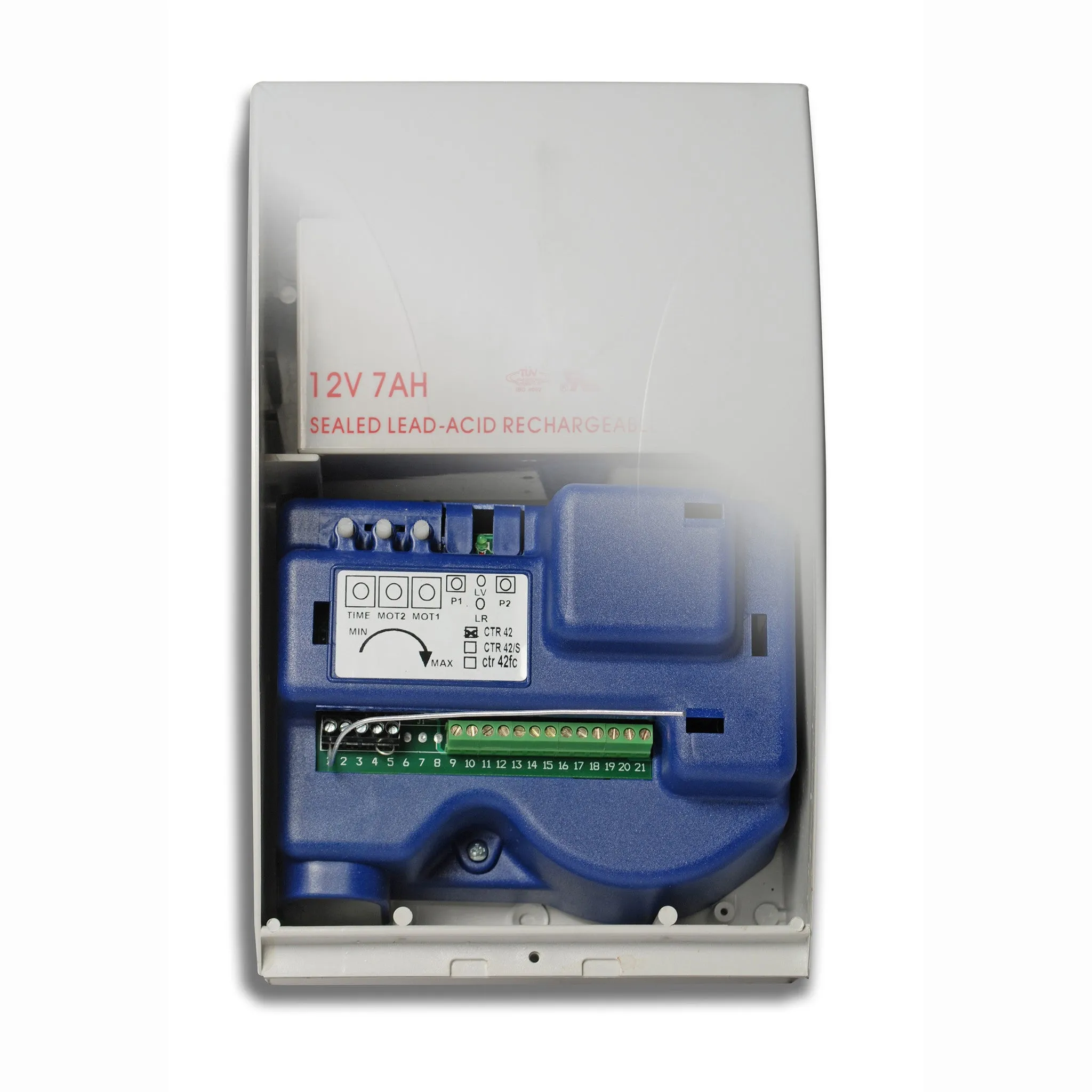

CTH44 ELECTRONIC BOARD TECHNICAL DATA

(solar panel & battery management on board)

Main power supply	By 12V solar module 12V battery or by main AC power 12V battery. Note: the control box is always supplied with an additional toroidal transformer 230-240V /50-60Hz or (110V/60Hz). Select the desired version while ordering)
toroidal transformer's Watts	105W
protection fuse	√10AF
transformer protection fuse	0,8AT (1,2AT for 110V transformer)
use on single or double wing gate	√
output services	12V
stand-by power consumption	7mA
radio receiver	2 channels (one for full cycle opening, the second for pedestrian access/partial 1 wing opening)
remote controls channels storage capacity	10 codes
radio transmission protocol	DUCATI rolling code
radio frequency	433,92MHz
remote control automatic learning	√
on board antenna	√
external antenna input	√
automatic closure working mode	√ with adjustable pause time up to 100 sec.
step by step working	√ one pulse to open; one pulse to close
motor power adjustment	√ by potentiometer
Obstacle detection safety system (DUCO SAFE)	obstacle detection
In compliance with EU-CE norms	√
timerized courtesy light output	-
flashing light output	√ max. 10W 12V lamp. blinks quickly while closing, blinks slowly while opening
electric lock output	-

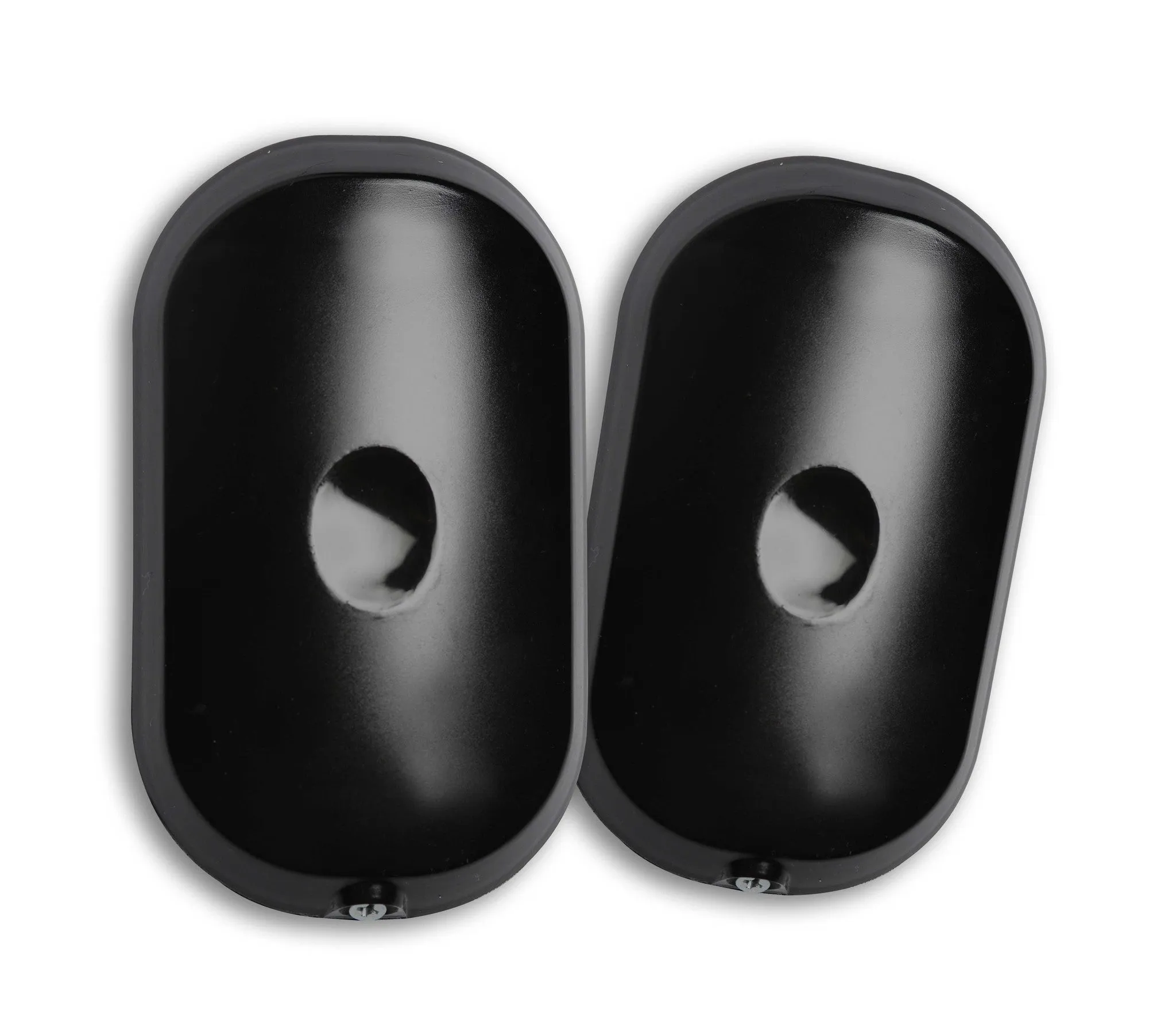

safety beam-photocells input (NC contact)	√ NC normally closed contact Note: use of special low consumption photocells is recommended: use only DUCATI low consumption photocells model 7120
A full cycle START input (NO contact)	√
pedestrian cycle START input ( N contact)	-
