Description

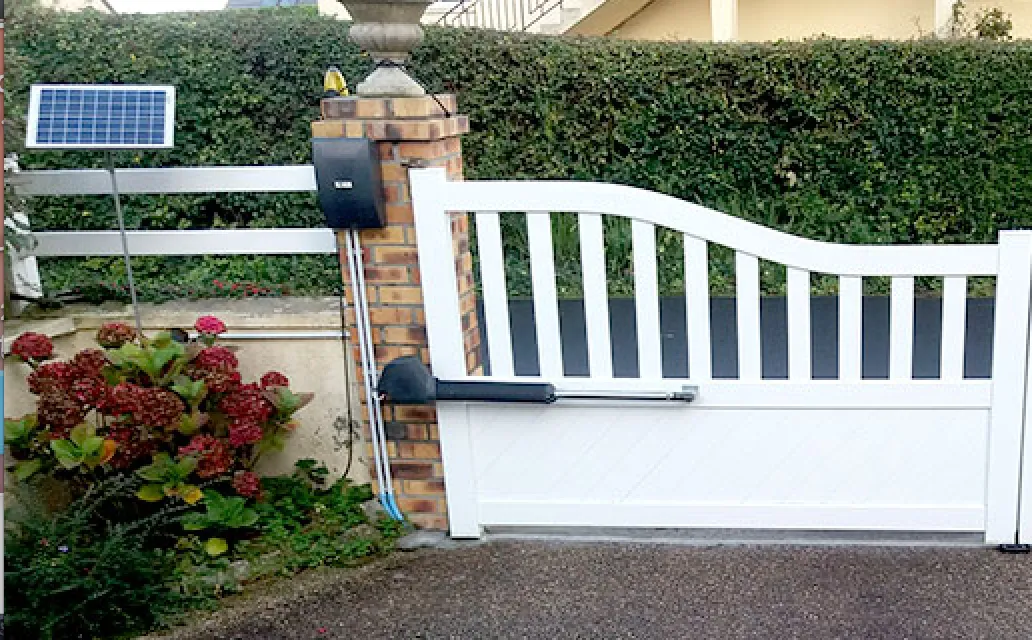

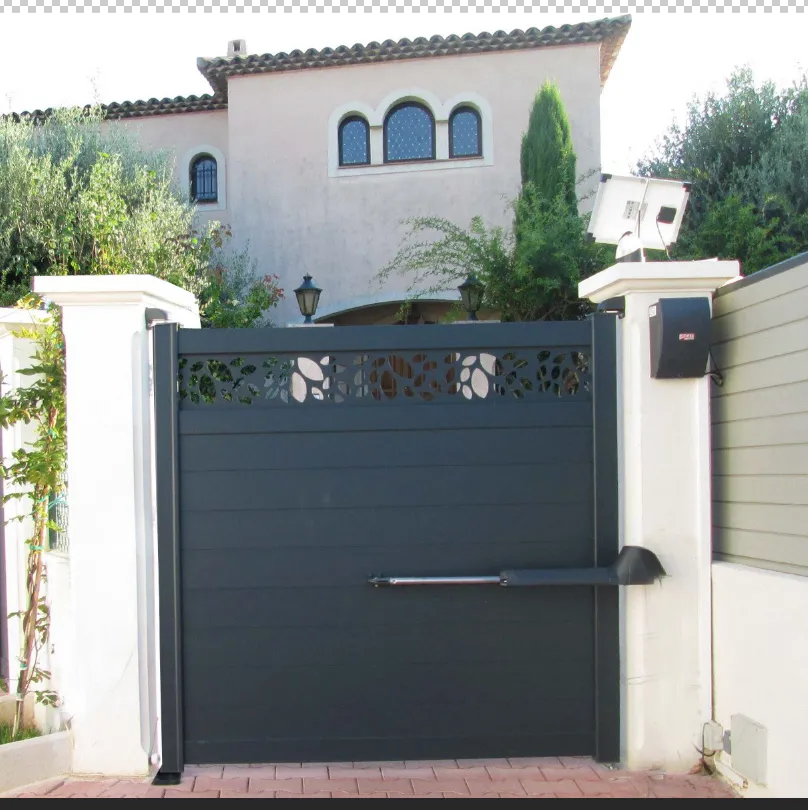

Ducati's most popular SOLAR powered swing gate opener

 Operate your gate powered by a photovoltaic solar panel for 100% autonomous use

• Ideal for residential single wing swing gate up to 2.6 m/250 kg
• The perfect solar powered gate opener. All included to operate your gate in 100% energy independence.
• The ideal gate operator where AC power is unavailable

SOLAR POWERED swing gate operator up to ensure energetical independence

Highly reliable as featured with Ducati's low consumption: with only 7mA stand-by consumption ensures long lasting performances in all weather condition. Ideal for residential use. Up to 50 cycles daily guaranteed . No additional modules requires: it's all included: on board solar panel & battery recharge management!

about reduced consumption technology....

about our solar powered openers....

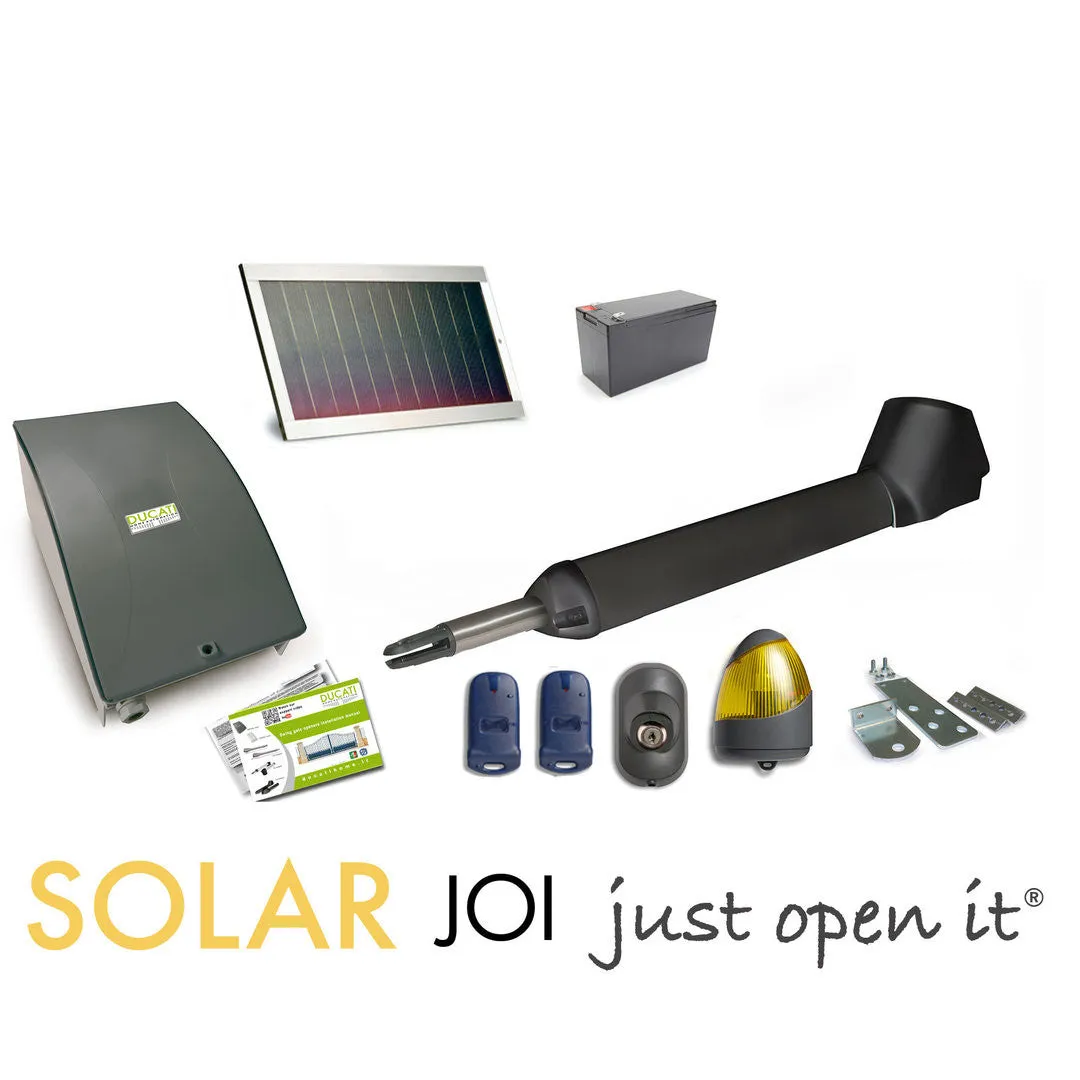

Kit Contents

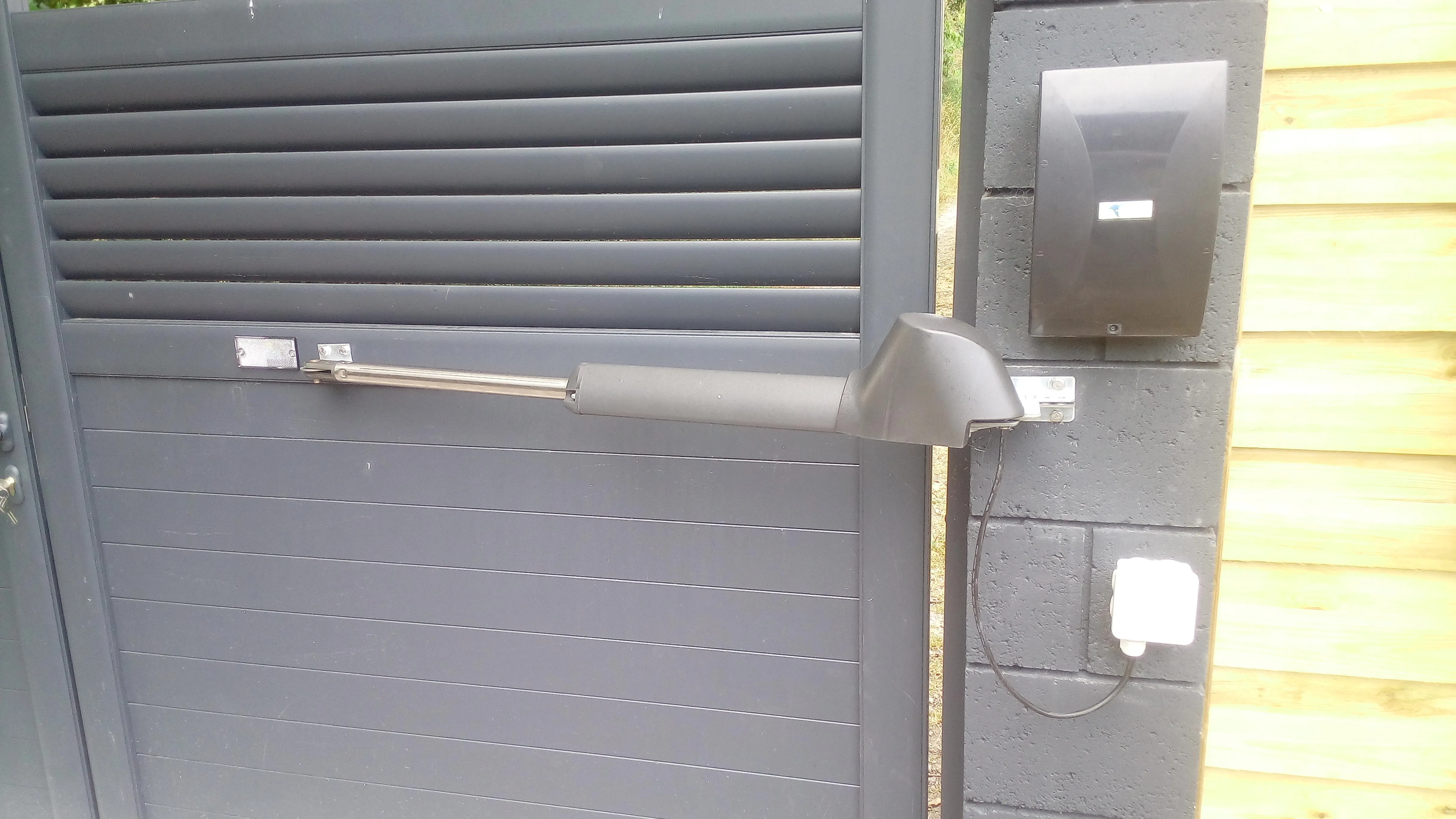

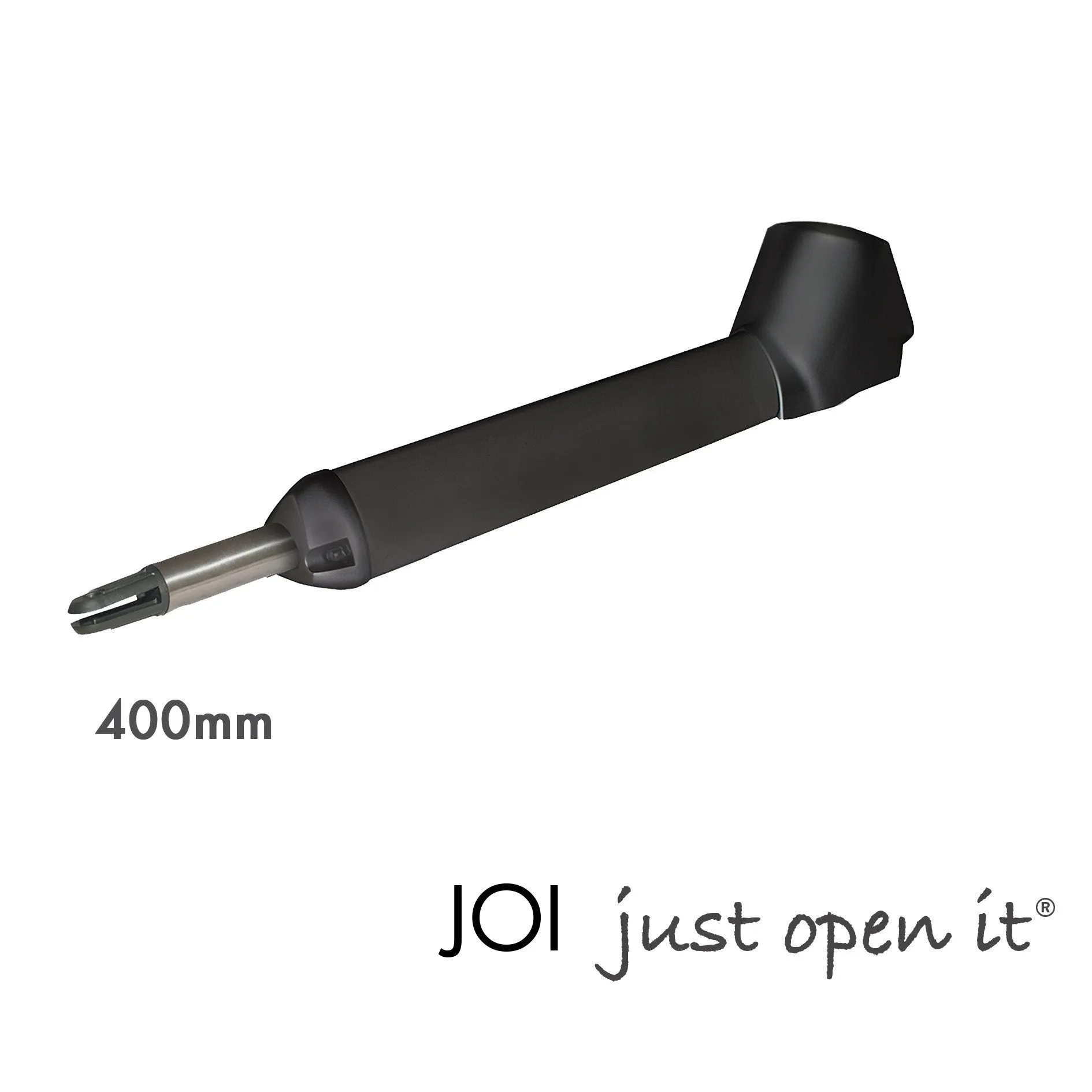

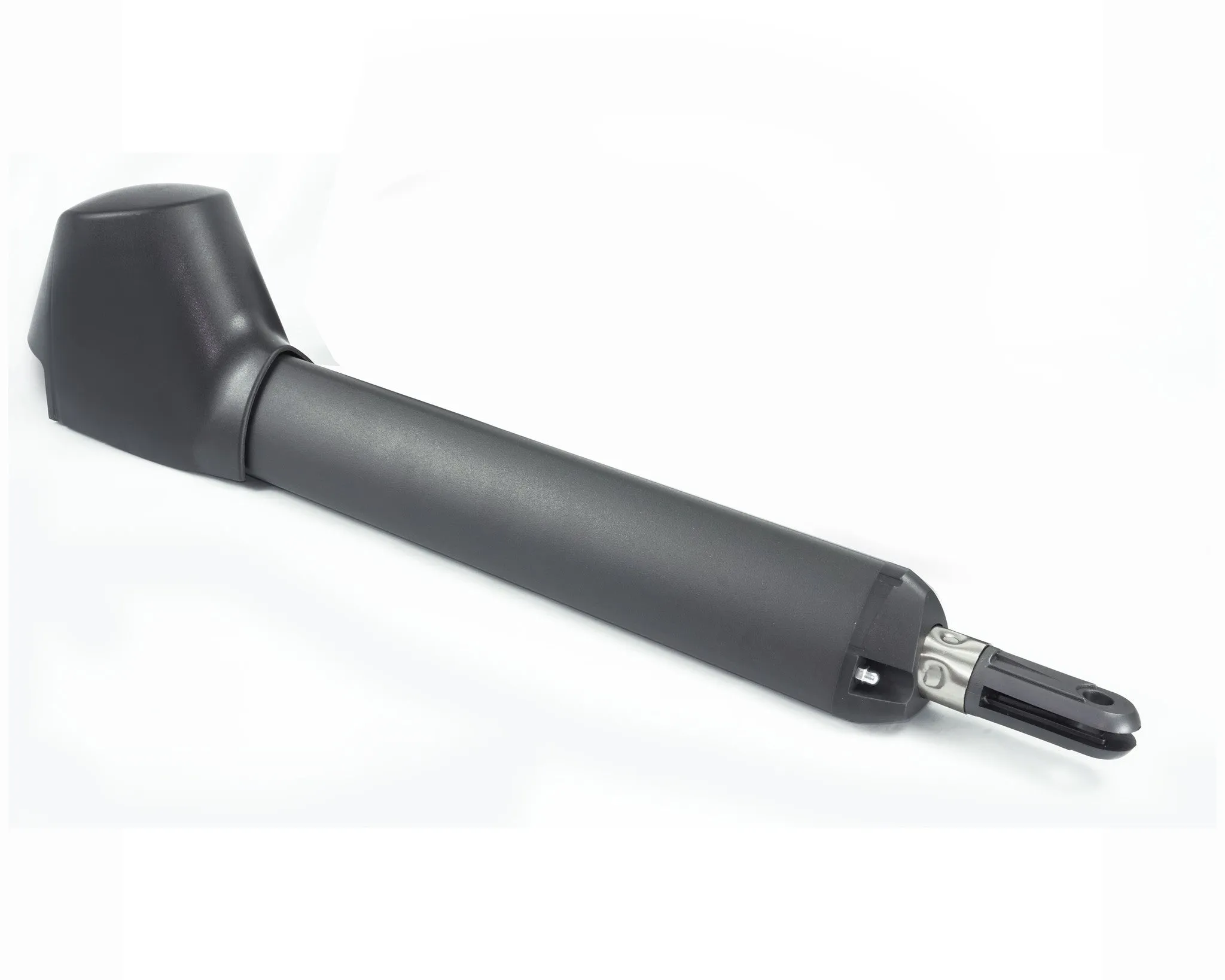

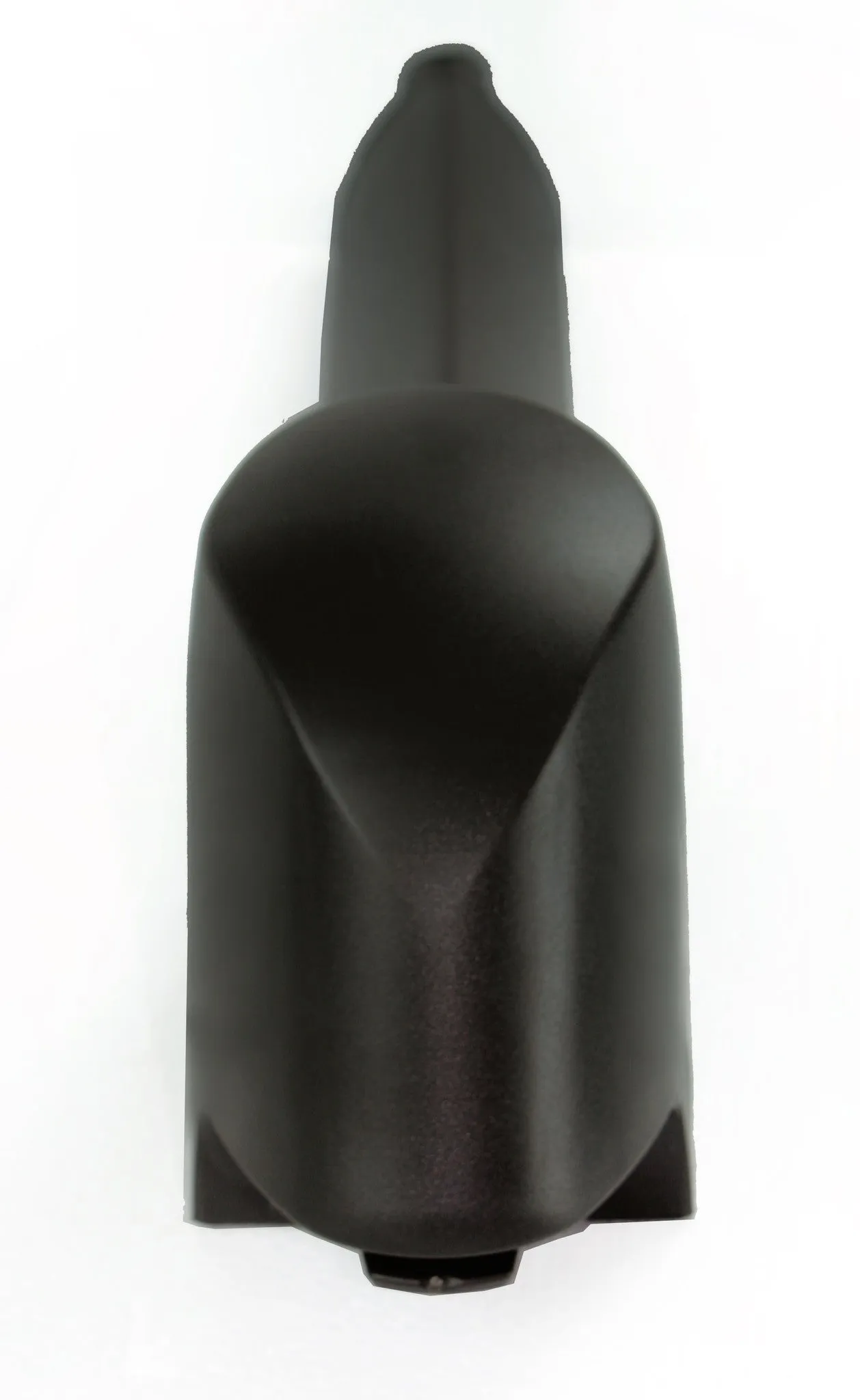

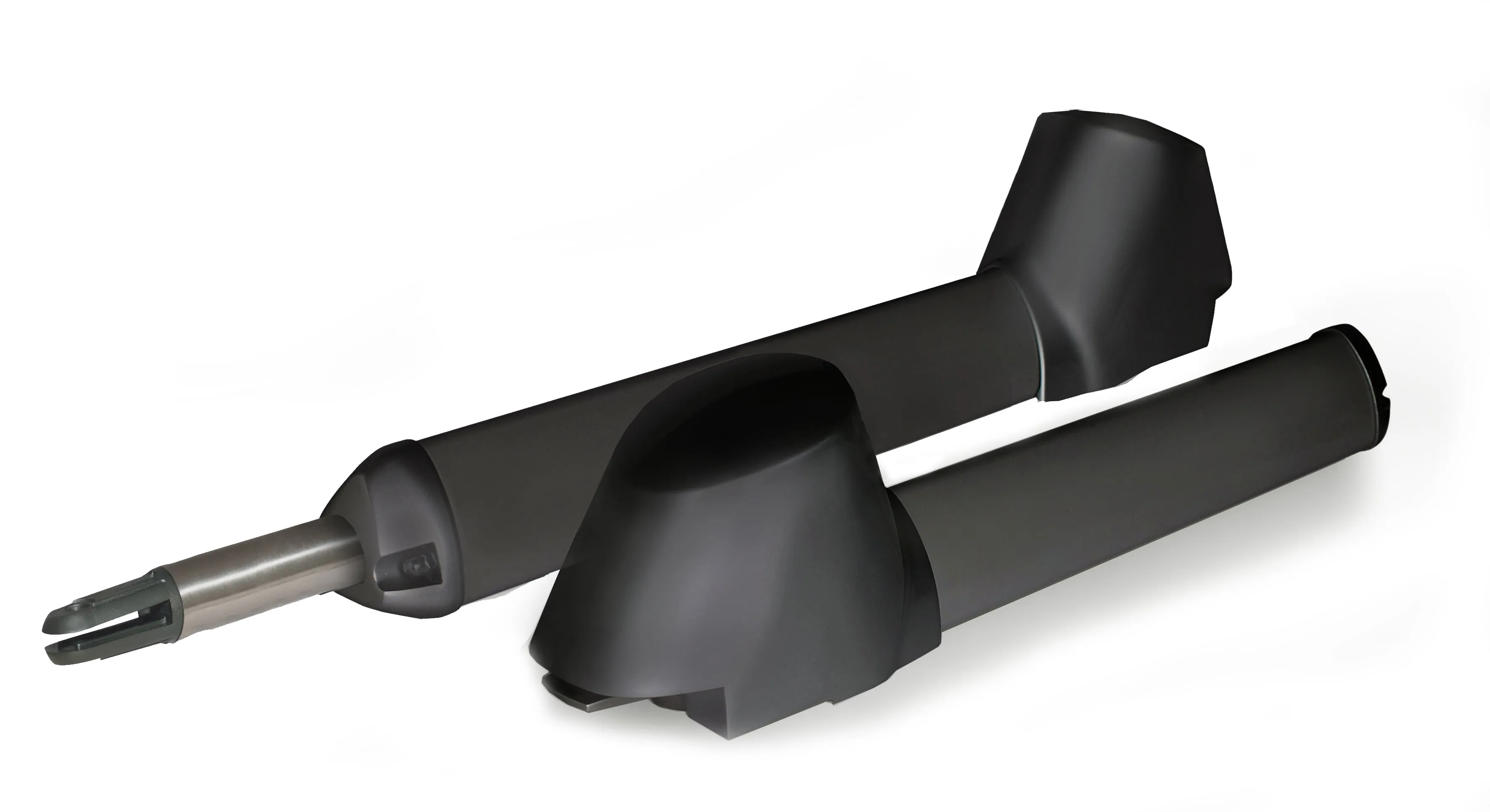

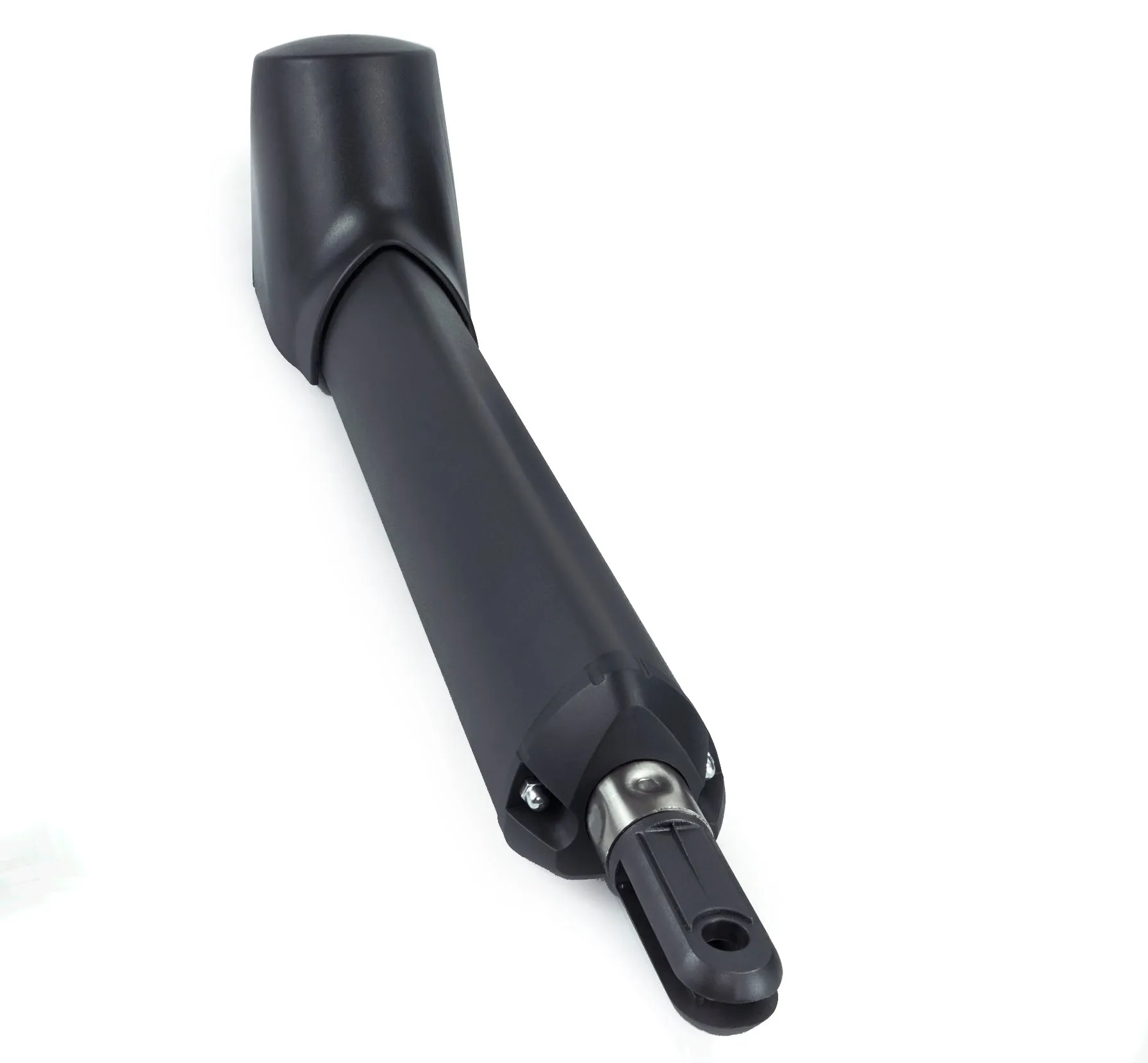

• 1 x SW400T - 400mm stroke 12V telescopic actuators

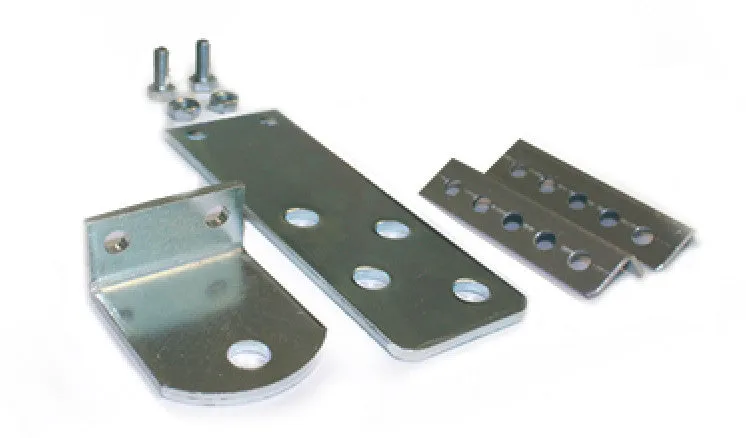

• 1 set of actuators fixing brackets

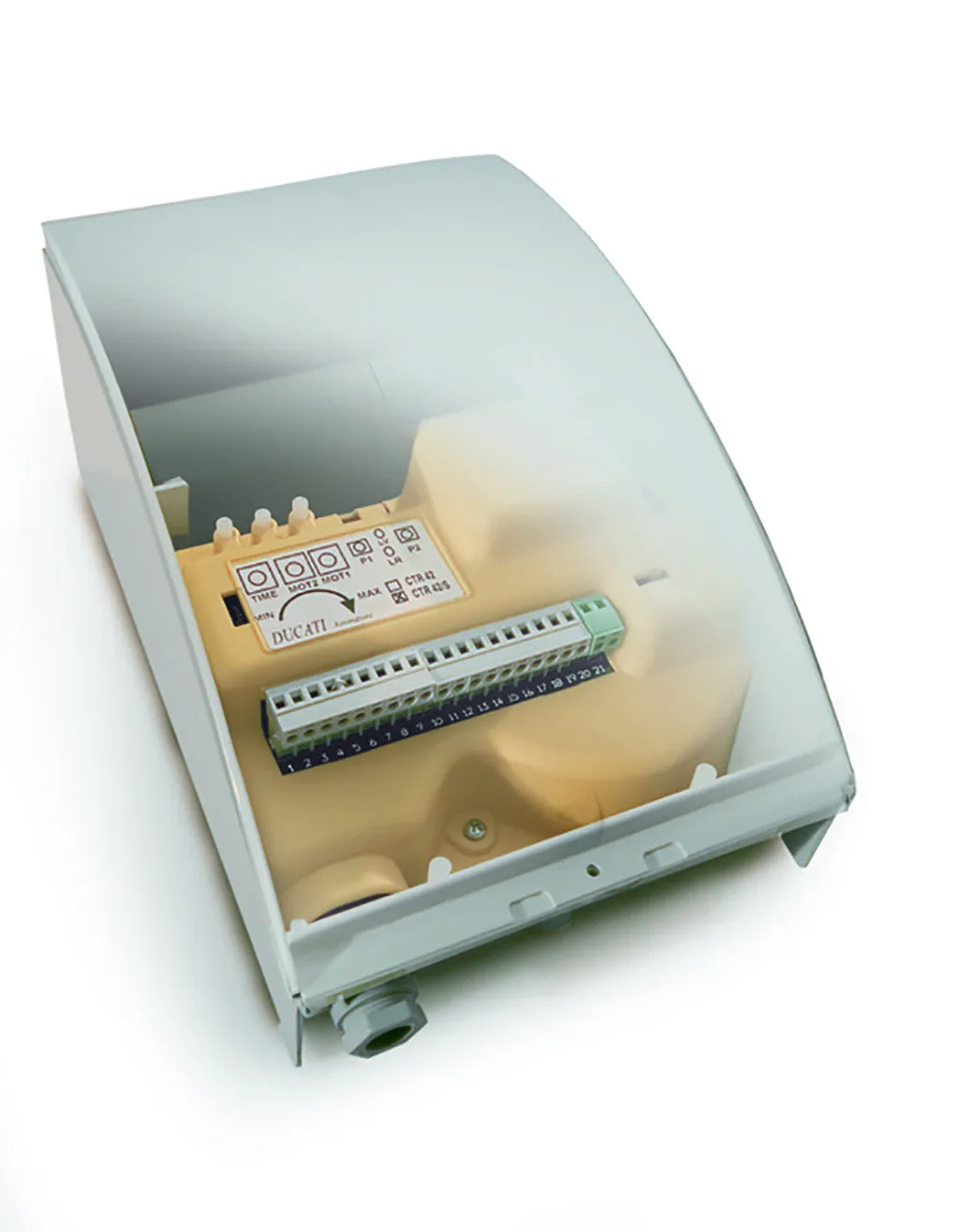

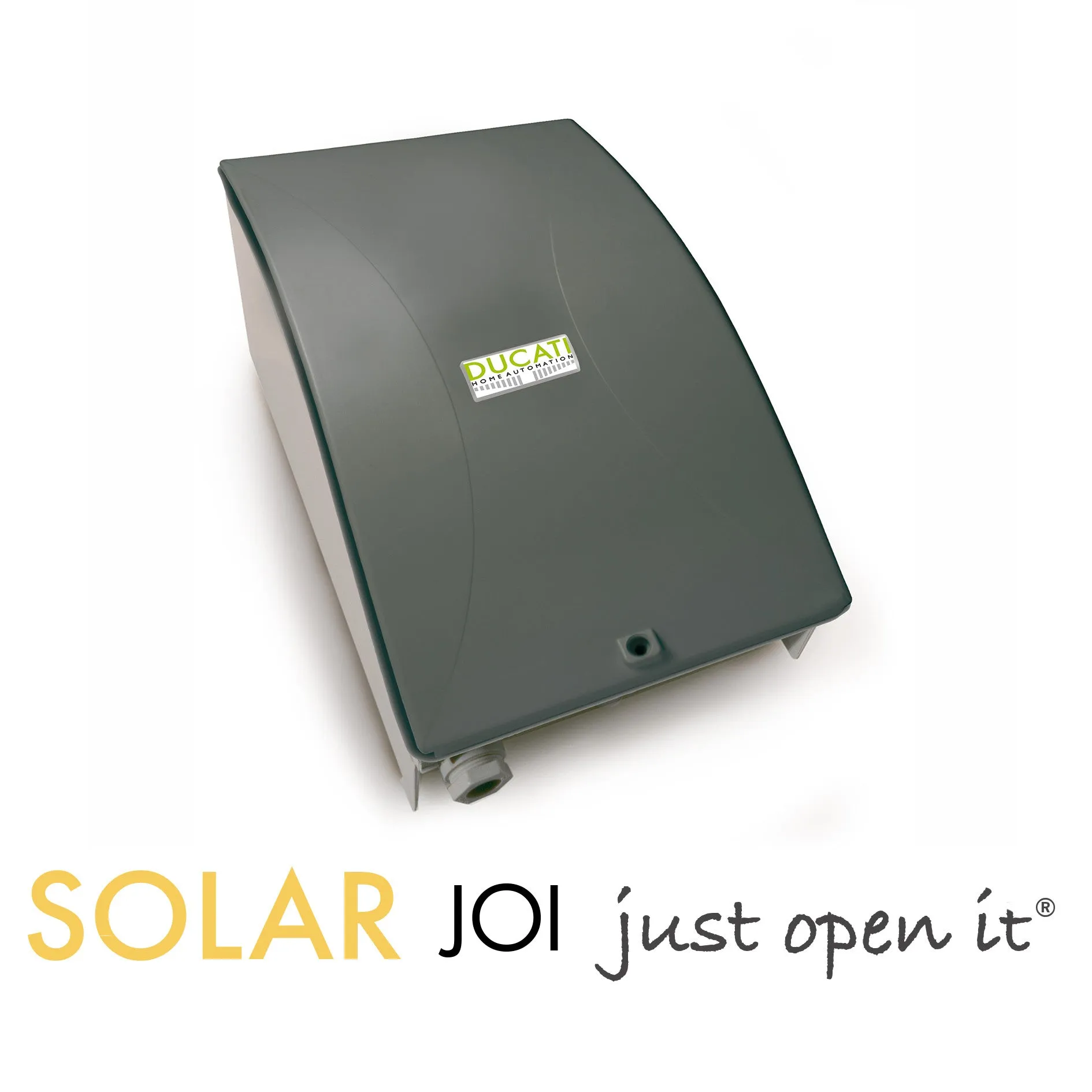

• 1 x 7857Rol - Large control box with electronic board CTH44 transformer, integrated radio receiver, battery and solar panel management

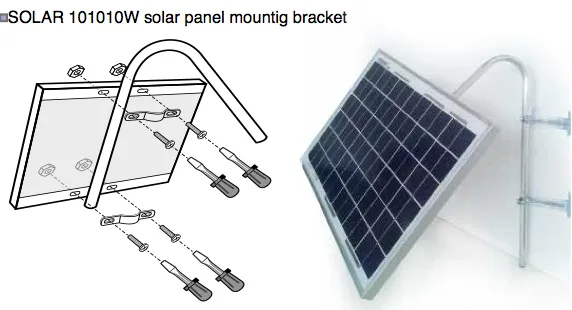

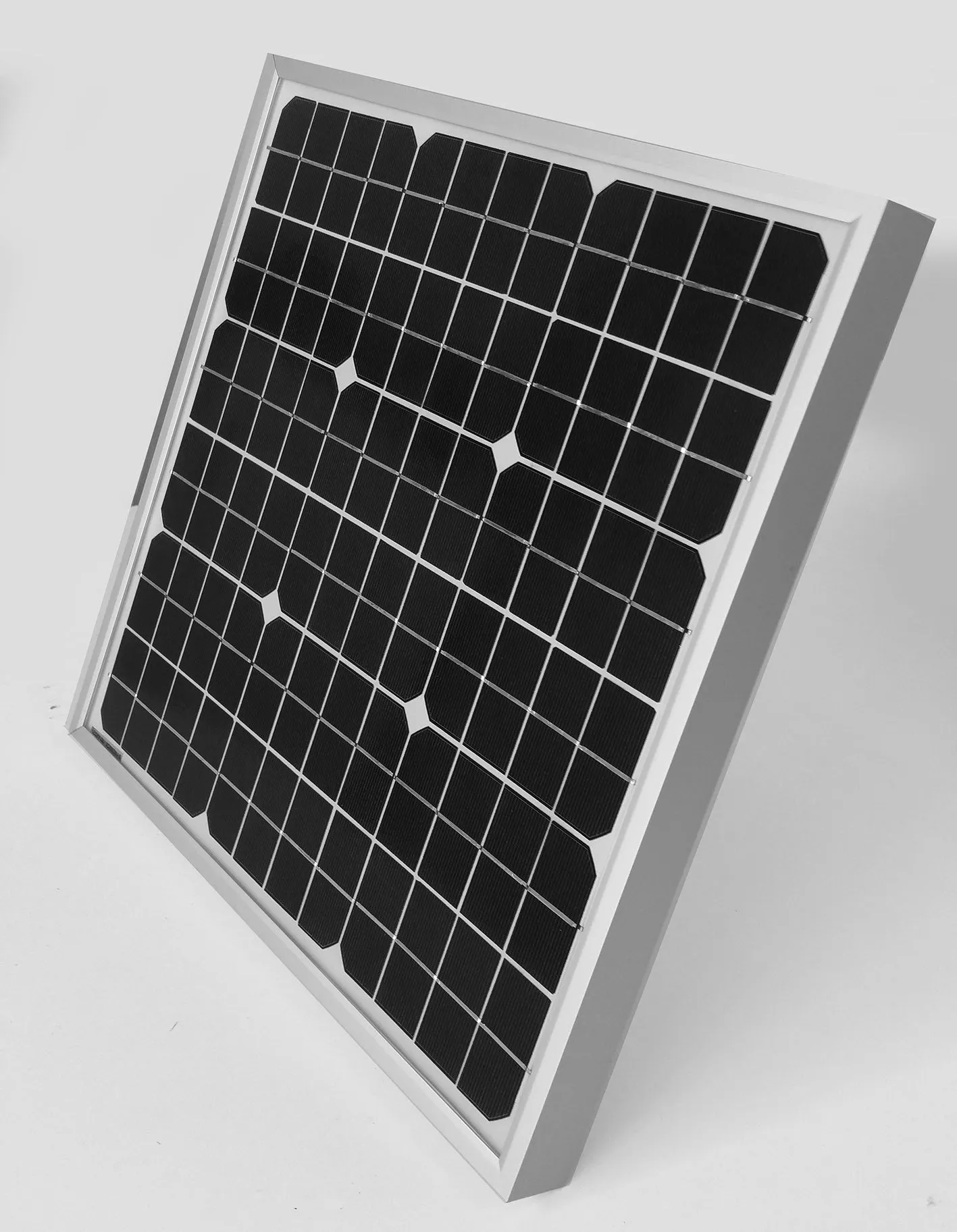

• 1x SOLAR1012 photovoltaic solar panel 10W 12V with fixing bracket
• 1 x 12V 7A battery

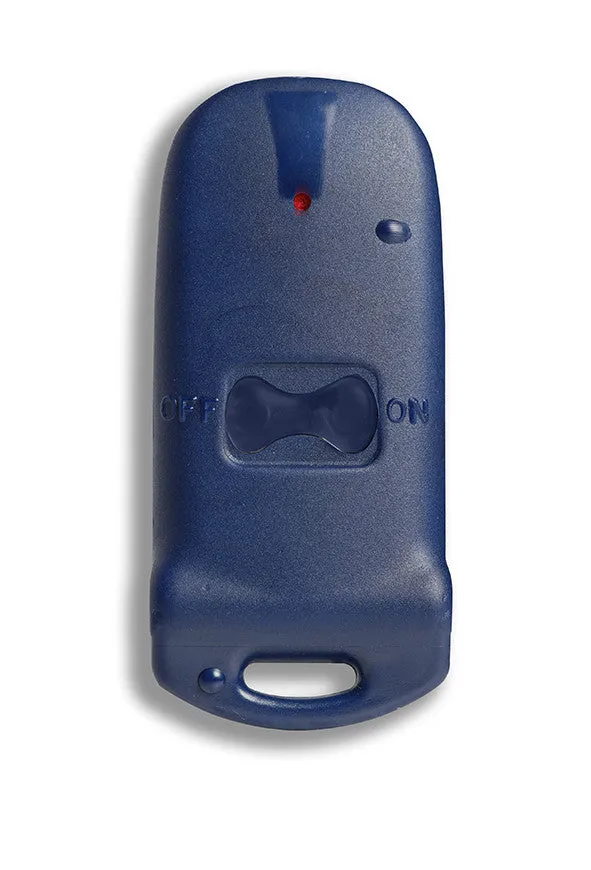

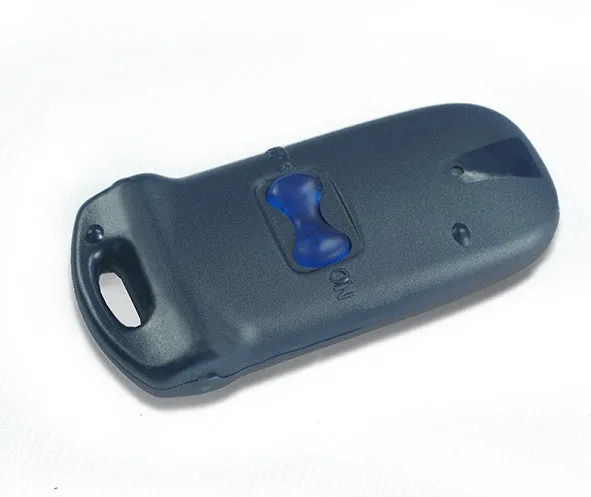

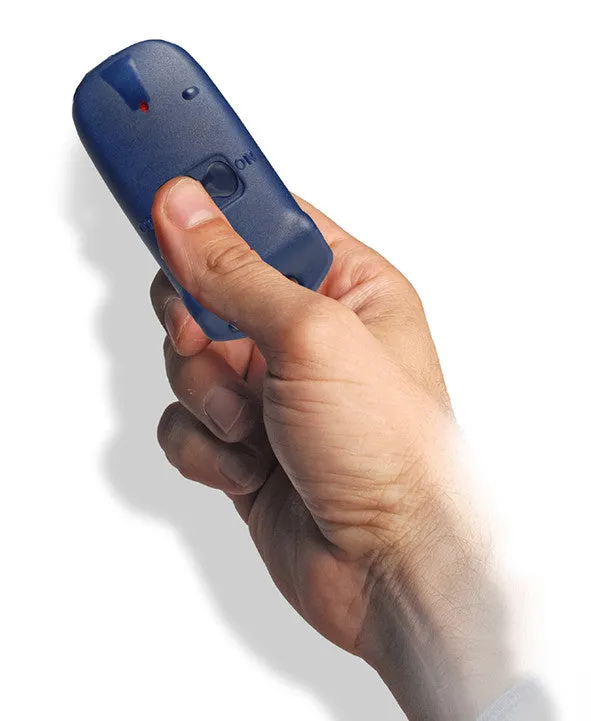

• 2 x 6203Roll - 2 buttons 433 Mhz rolling code transmitters

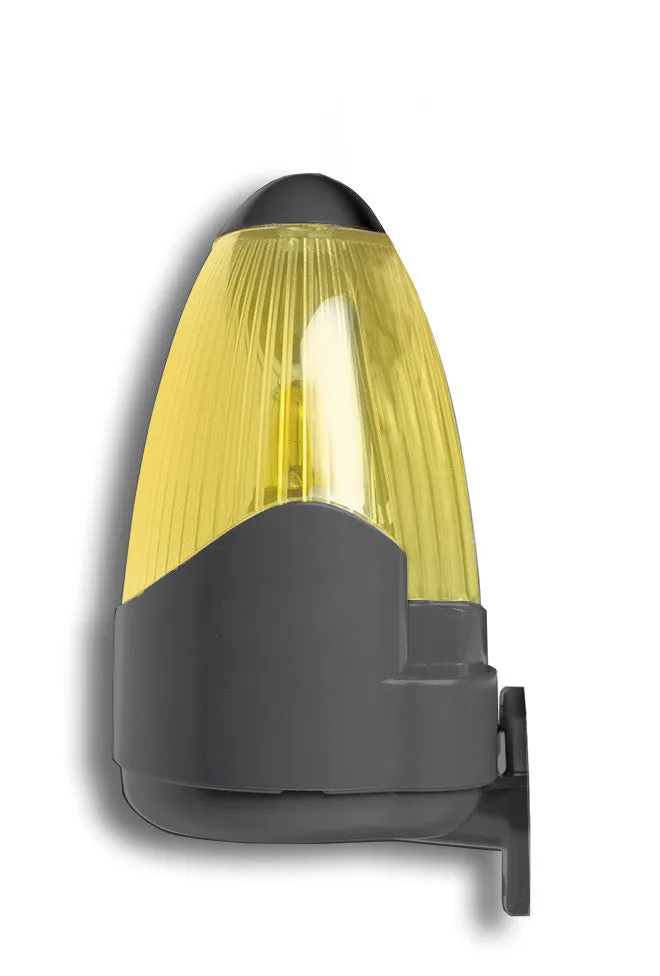

• 1 x SW7500 - blinking light 12V
• 1 x SW5000 - key switch

* Starting from 01/04/2022, due to the difficulties in sub-supplying of some components, the vendor reserve the right to supply the product with these modifications:

• the transformer could be replaced by a battery charger
• the electronic board model could be replaced by a different model substantially equivalent to the one listed on the website

Features

AUTO-LOCK TECHNOLOGY

The self-locking properties of the spindle increase the protection against a dangerous and unauthorized “pressing” of the gate and the otherwise necessary e-locks for the final positions can be omitted. A massive 20 mm diameter three principle steel spindle made of PR80 steel ensures long and reliable operation

DUCO SAFE

Obstacle detection safety system guarantees maximal safety of use to your family

• Ideal for a safe, quick and easy installation: the system is electrocution risk-free.
• Low consumption technology: only 0,007A stand-by consumption! reduces waste of energy, save money Ensure long lasting autonomous use ad reliability. up to 40 daily cycles guaranteed even in worst winter weather.
• Integrated solar panel & battery management: the control board is ready to operate autonomously.
• Telescopic actuators ensures  long lasting performances and less stress on gate hinges
• Ideal for a safe, quick and easy  installation: the system works in DC current and is electrocution risk-free.
• 2 working modes: "STEP by STEP" ( push to open & push to close) or Automatic close with adjustable time (you can vary the pause time from 1 to 100 seconds)
• Control unit with integrated battery housing compartment: can fit any 12v battery up to maximal dimension : 9cm x 15cm x 9,5cm h
• Easy  self-storing  of the remotes controls by pushing one button
• Adjustable motor power/ obstacle detection sensitibility. By decreasing the power the gate opener will be more sensible in case of impact on an obstacle. The adjustment is very easy:  just need to rotate  potentiometer related to each motor.
• Pedestrian opening (1 partial opening of one wing to allow the pedestrian crossing) this feature can be controlled by remote control
• Made in Italy - All components are manufactured in the company to warranty high quality and reliability.
• After sale service and assistance provided directly by manufacturer without intermediaries in order to provide quick and immediate solution to any demand.
• The gate is automatically locked in closed position (irreversibile system)

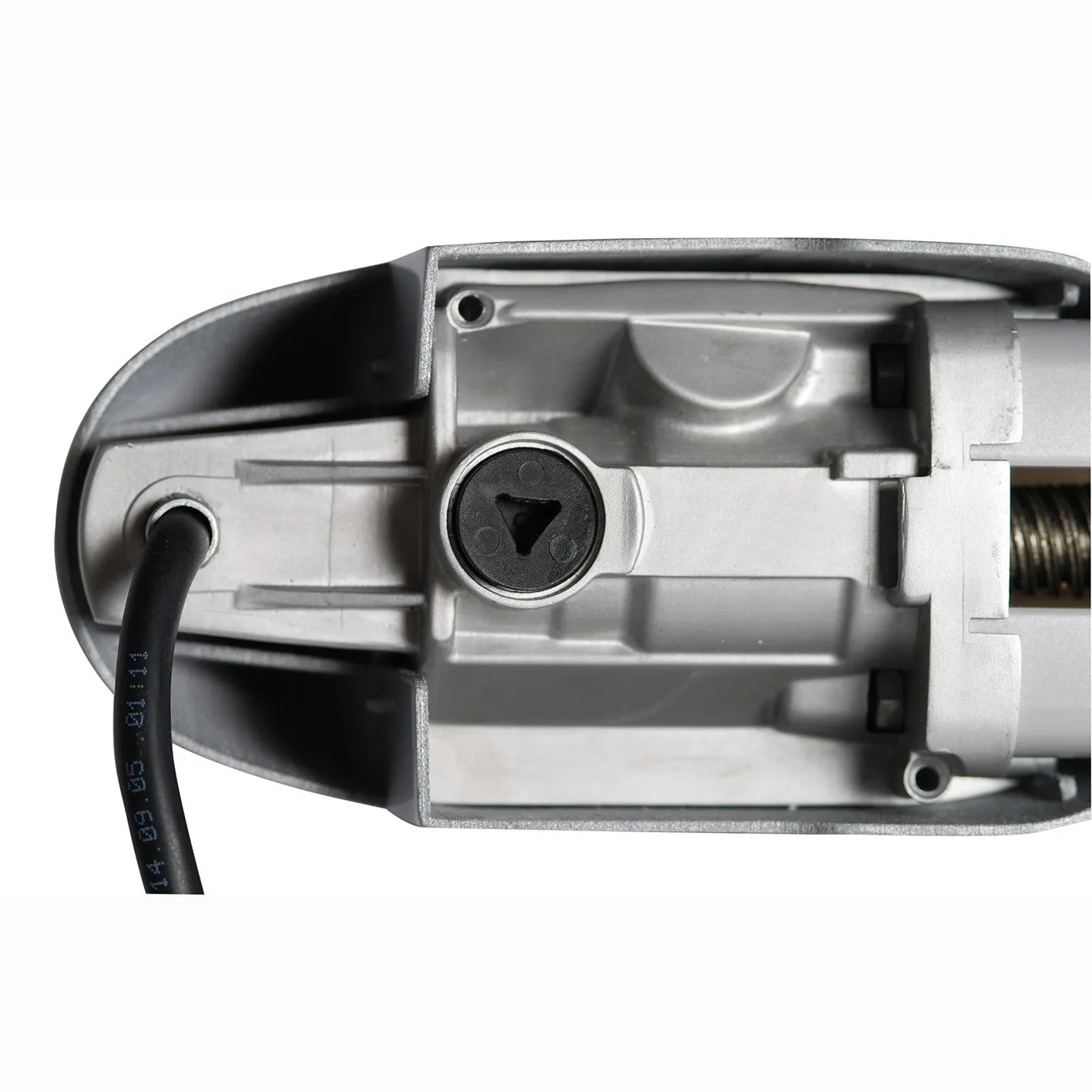

• Manual release system by universal triangular key
• Safety is ensured by an sensitive amperometrical obstacle detection system and pressure control. Photocells ( safety beans) are no longer mandatory. Photocells  are an optional accessory that can be helpful to prevent scratches to the painting of vehicles left in the vicinity of a moving gate. (EN13241-1: 2003 A1 ( April 2011 ) EN12453 : 2002 EN12445 : 2000)

• : product certified on all points of the current European regulations. Notify body as NEMKO / INTERTEK test reports & certificates available on request
• Totally in house designed software and hardware are focused on reduce energy consumption and with attention to the absolute reliability using innovative components of the latest generation as our High quality radio receiver hybrid
• Ducati chooses to use toroidal transformers only to achieve maximum reliability and safety by power surges and ESD. Our Standard 230V-50Hz transformer is also available in 110V/60Hz version.

Technical data

ACTUATOR  TECHNICAL DATA

ELECROMECHANICAL TELESCOPIC  ACTUATOR SW400 T

NOTE: the actuator will stop by amperometric detection system: it therefore requires  mechanical limits to be installed on the floor to stop the gate wing in the open and closed position. Special actuator model SW400 in "FC" version are featured with on-board mechanical limits for the open wing position.

CTH44 ELECTRONIC BOARD TECHNICAL DATA

(solar panel & battery management on board)

Manual

to download the SW400T actuator's installation diagram

 to download the CTH44 electronic board wiring diagram

 VIDEO  installation manual

 to download full swing gate openers installation manual

Spare parts
