Name: VOXL<sup>&reg;</sup> Flight Deck - Mount and Fly Autonomously, Assembled Obstacle Avoidance Kit
SKU: 466990

Product Details ＋

Mount and Fly PX4 Drone Development for Obstacle Avoidance

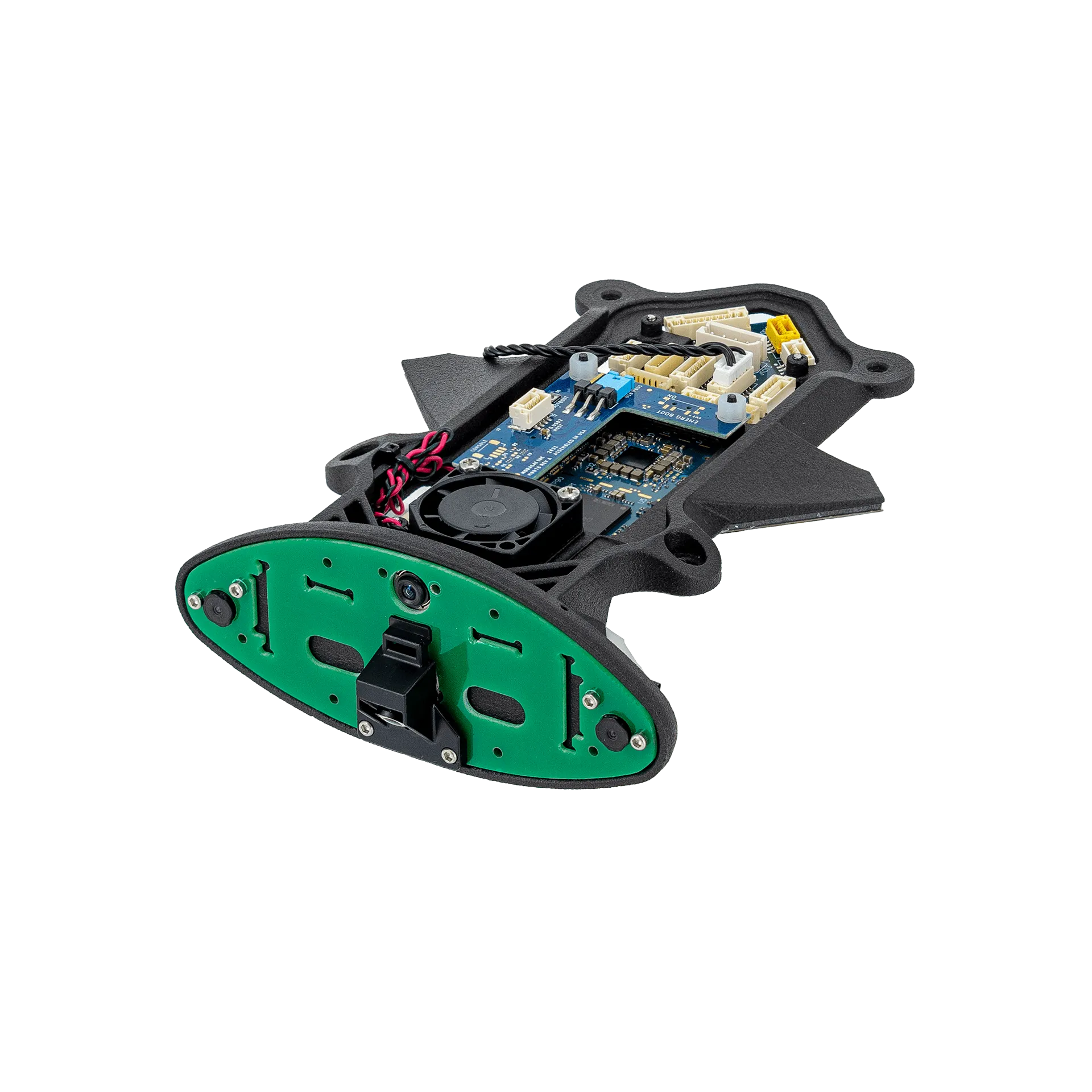

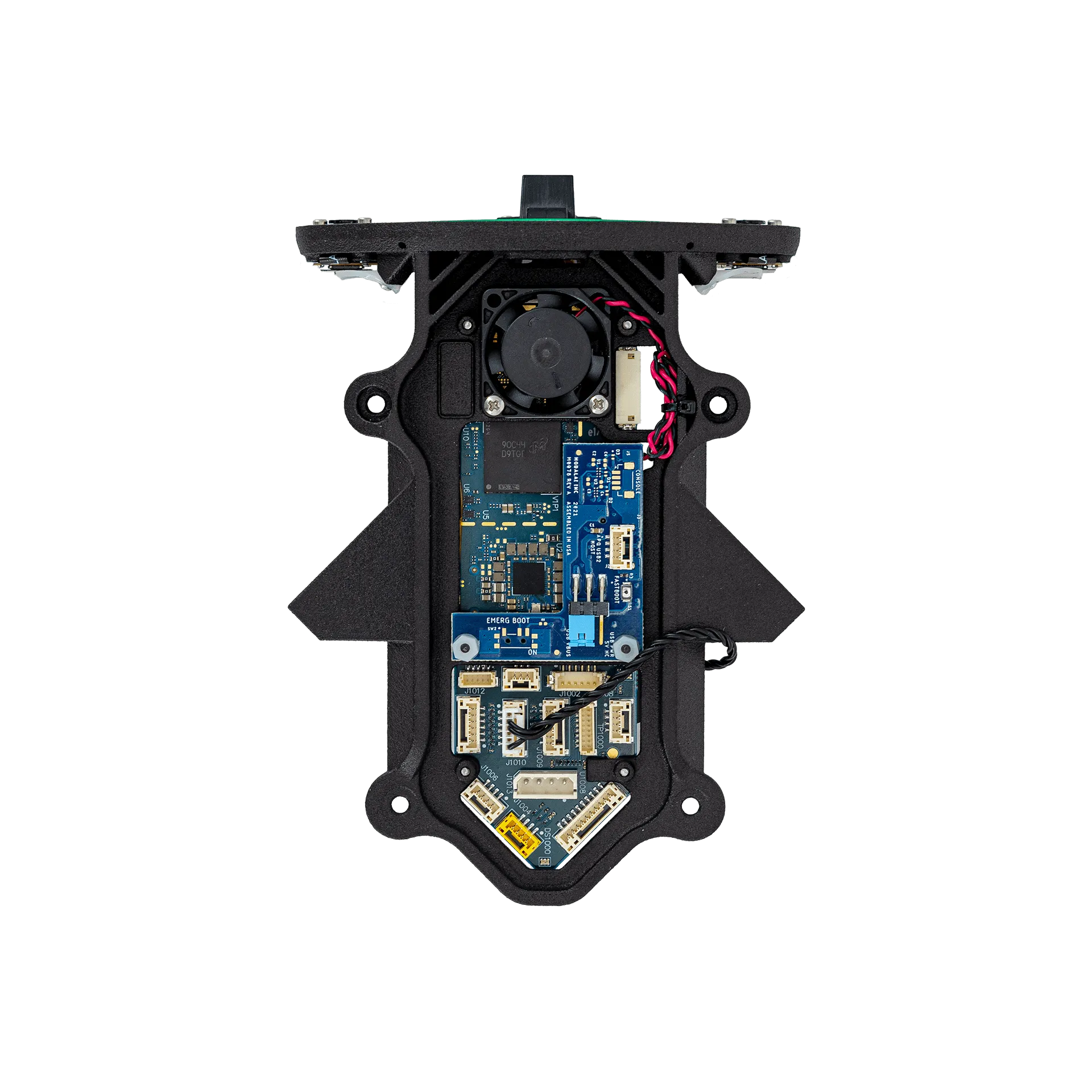

The VOXL^® Flight Deck R2 is a fully assembled and flight ready drone development platform hosting a ModalAI® drone and robotics companion computer fused with the ModalAI PX4 flight controller. It comes pre-configured with Tracking, Stereo and Hi-Res optical sensors, providing the easiest way to add US built* GPS-Denied Navigation and Obstacle Avoidance to a vehicle (the only thing easier is our ). The Flight Deck weighs in at only 91g (with not pictured, without the USB cable).

Drone not included

Dimensions: 96 x 150 x 38 mm

Note: is expected to be the last software release for this product.

Computer Vision and PX4 Combined

a Drone Snapdragon companion computer and PX4
An feature rich
Open source support

Technical Details

What's Included

A in a ready to mount frame that includes the following

Optical Sensors

45° downward/forward facing Tracking VGA Global Shutter Sensor for indoor flight and GPS-denied navigation
Forward facing Stereo VGA Global Shutter Sensor pair for Obstacle Avoidance
Forward facing 4k High-resolution Sensor for 1080p30 or 4k30 video recording

Communications

Wi-Fi (can be configured as station or AP)
QTY2 USB 2.0 (for VOXL and Flight Core)

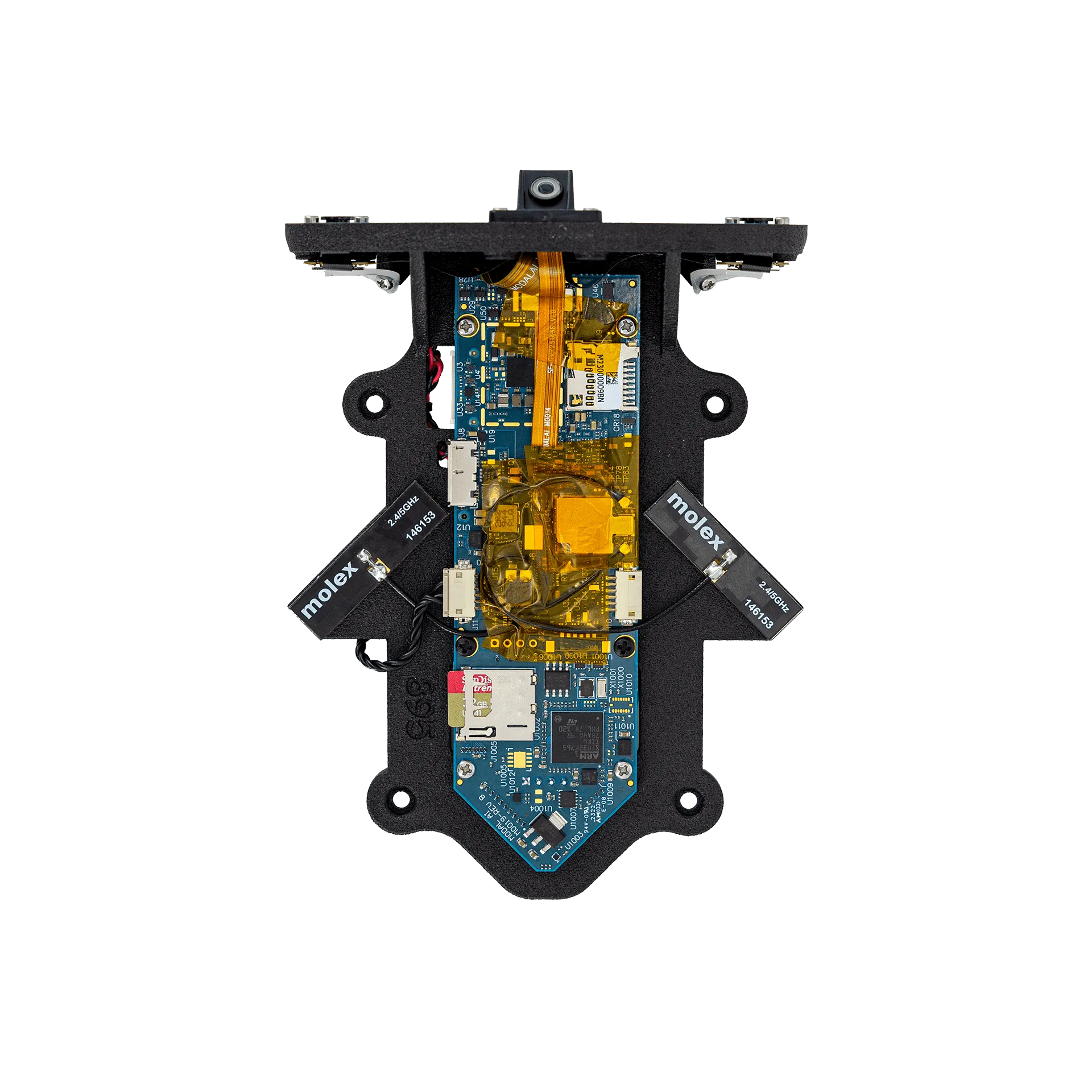

Shown in the images is an optional with antennas (note: not included in base model)

Power Module

for flight and desktop development ()

Frame

The VOXL-Flight Deck is a dampened, FR4 mounting frame tailor-made to easily mount to with four simple screws (note: this kit doesn't include an s500 v2 frame, but the does!)

Connectors

Power Module to VOXL Flight Cable
PWM Breakout board and cable ready to connect to ESCs (PWM and DSHOT support)
RC Input Cable (Spektrum)
USB-to-JST connector for wired connection to Ground Control Station

Model Numbers

MDK-F0001-2-01	Base Kit: Combines VOXL and Flight Core v2
MDK-F0001-2-01-D2	Base Kit USB Expansion Debug Board
MDK-F0001-2-01-M3	Base Kit Microhard Add-on (Modem Sold Separately)
MDK-F0001-2-01-M4	Base Kit LTE Sierra Wireless 7610 (NA)
MDK-F0001-2-01-M12	Base Kit LTE Sierra Wireless 7620 (EMEA)

HS Code: 8542.31.3000

* All of the PCBAs are designed and manufactured in the US. the Flight Deck is assembled and tested in San Diego, CA. Some sub-assembly components come from China. [email protected] for questions.
